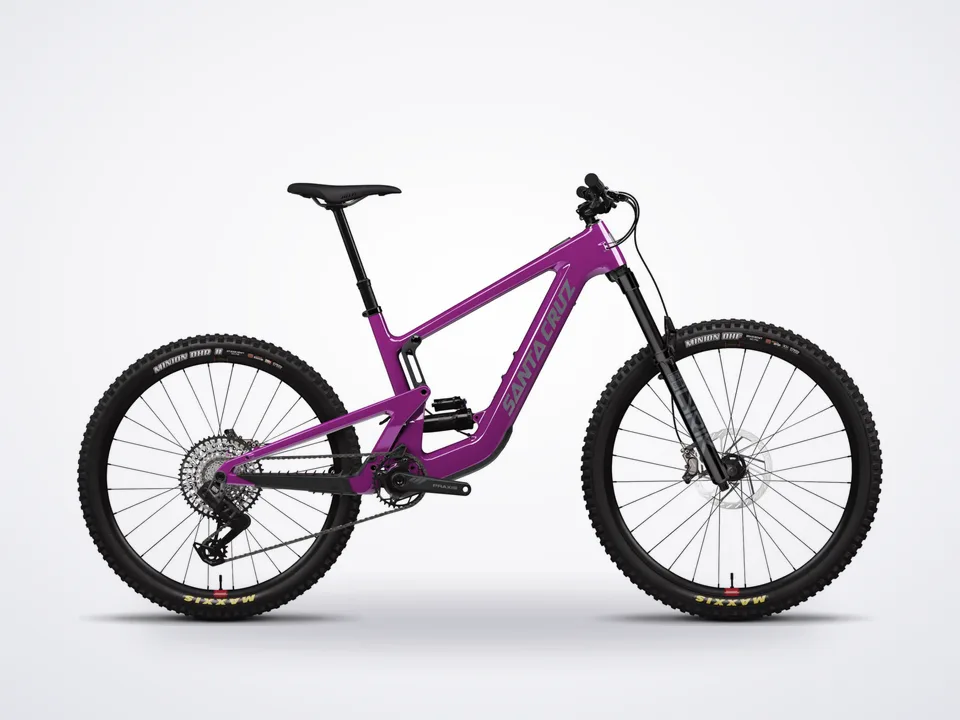

Santa Cruz Heckler SL 1 C GX AXS
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
- Fast, light or powerful
- choose all three
A sneaky ebike that's lightweight, powerful and has surprising range. All the on-trail traits of a Santa Cruz combined with the Fazua RIDE 60 drive unit. 150mm of legendary VPP™ suspension, mixed wheels, and progressive geometry makes the Heckler SL a natural handling trail bike. Just with the added power of an ebike.
- Available in
- C & CC Carbon
- Wheel Size
- MX
- Front Travel
- 160mm
- Rear Travel
- 150mm
- Drive Unit
- Fazua Ride 60
- Battery Size
- 430 Wh
Show full description and specs
Fazua Ride 60
The tough, light, smooth carbon frame contains the 430 Wh battery and quiet, frictionless Fazua RIDE 60 motor.
Power at your fingertips
With three power modes available at the touch of the ring controller you choose how much push you want and how much range you get.
Customize via app
Customize your ride modes and access more information via the Fazua app.
Specs
- Material
- Carbon C
- Travel
- 150mm
- Wheel Size
- MX
- Rear Shock
- RockShox Super Deluxe Select+, 210x55
- Fork
- RockShox Lyrik Select+, 160mm
- Rear Derailleur
- SRAM GX Eagle AXS T-Type, 12spd
- Right Shifter
- SRAM AXS Pod Bridge
- Cassette
- SRAM GX Eagle T-Type, 10-52t
- Chain
- SRAM GX Eagle T-Type, 12spd
- Chainguide
- OneUp Chainguide
- Headset
- Cane Creek 40 IS Integrated Headset
- Rear Tire
- Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO+
- Front Tire
- Maxxis Minion DHF 29"x2.5"WT, 3C MaxxGrip, EXO+
- Front Hub
- DT Swiss 370, 12x110, Torque Cap, 6-Bolt, 28h
- Front Rim
- Reserve 30|SL AL 6069 29"
- Rear Hub
- DT Swiss 370, 12x148, XD, 6-Bolt, 36t, 28h
- Rear Rim
- Reserve 30|SL AL 6069 27.5"
- Front Rotor
- SRAM HS2 200mm
- Rear Rotor
- SRAM HS2 200mm
- Brakes
- SRAM Code Bronze Stealth
- Crankset
- Praxis eTor AL, 104BCD, 165mm
- Handlebars
- Santa Cruz 35 Carbon Bar, 800mm
- Stem
- Burgtec Enduro MK3, 42mm
- Saddle
- WTB Silverado Medium, CroMo
- Seatpost
- OneUp V2 Dropper Post, 31.6
- Grips
- Santa Cruz Bicycles House Grips or Burgtec Bartender Pro Grip Minnar
- Battery
- Fazua 430 Wh Integrated Battery
- Drive Unit
- Fazua RIDE60
- The Fazua RIDE 60 drive unit holds the motor, gearbox, and sensors.
- It’s extremely light, powerful, compact, and nearly silent.
- It produces 60 Nm of torque power and is capable of up to 450W, which makes it stronger than other “mid-power” or “lightweight” systems.
- Battery Charger
- Fazua Charger
Geometry
All units are in millimeters or degrees.
Frame Sizing
If you're on the cusp between the recommended height range of two sizes, the absolute best thing is to try to ride them both. At a minimum, check the stack/reach measurements on your current bike and compare it to the new model you are looking at to get an idea of a fit you are already comfortable with. If riding the bike is not an option, consider the following.
The Heckler SL is available in sizes extra small - extra extra large (S-XXL).
Personal Preference
A larger size frame will be more stable, and will give you more room to move without upsetting the weight-balance of the bike. The larger size will…
