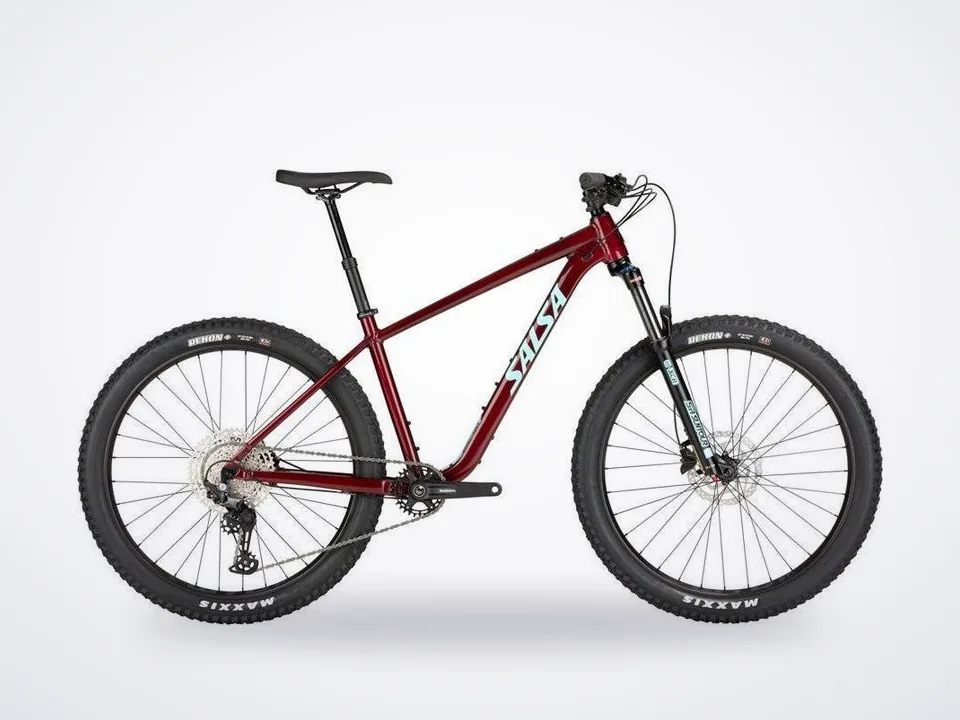

Salsa Rangefinder Deore 12 27.5+

• 6061-T6 alloy frame
• Internally-routed shift, brake and dropper post housing
• 120 mm suspension fork and dropper post
• 1x drivetrain keeps shifting simple with plenty of gear range
• Hydraulic brakes offer confident stopping power
• Compatible with 29" or 27.5 plus wheels and tires
• Carry what you need with the integrated top tube bag mount, two bottle cage mounts in the frame on M, L, and XL sizes, one accessory mount under the down tube, and rear rack mounts
• Geometry that grants confidence to newer mountain bikers

Build Kit

Frame

Rangefinder Aluminum

Color

Dark Red

• Fork: SR Suntour XCR34 Boost, Air, LOR, DS, 120 mm or RST Aerial 110-15, Air, TNL, 120 mm

Rear Shock

N/A

Seatclamp

Salsa Lip-Lock

Crankset

Shimano MT501, 30t

Bottom Bracket

Shimano BB52 BSA

Front Derailleur

N/A

Rear Derailleur

Shimano Deore M6100 SGS

Cassette

Shimano Deore M6100, 10–51t, 12-speed

Chain

Shimano Deore M6100

Shifter

Shimano Deore M6100

Handlebar

Salsa Salt Flat 31.8, 750 mm (XS–SM) or Salsa Rustler 31.8, 800 mm (M–XL)

Stem

Salsa Guide 31.8, 60 mm

Grips

Salsa File Tread

Headset

FSA Orbit NO.57E 1.5 ZS

Brakes

Shimano MT200 or Promax DSK-925

Rotors

Shimano RT10 Center Lock, 160 mm

Saddle

WTB Volt Medium, Steel, 142 x 265 mm

Seatpost

TranzX YSP18PLQ

• XS–SM: 100 x 361 mm
• MD–XL: 130 x 425 mm

Front Wheel

Shimano MT400 Center Lock hub (15 x 110 mm), WTB ST i40 32h, 27.5" rim

Rear Wheel

Shimano MT401 Center Lock hub (10 x 141 mm QR), WTB ST i40 32h, 27.5" rim

Tires

Maxxis Rekon 27.5 x 2.8", EXO Wire Bead, not tubeless-compatible

Tubes

Included

Sizing

Salsa recommends the following sizes based on rider height

XS

5'2" - 5'4"

SM

5'3" - 5'9"

MD

5'8" - 6'0"

LG

5'11" - 6'3"

XL

6'2" and up
