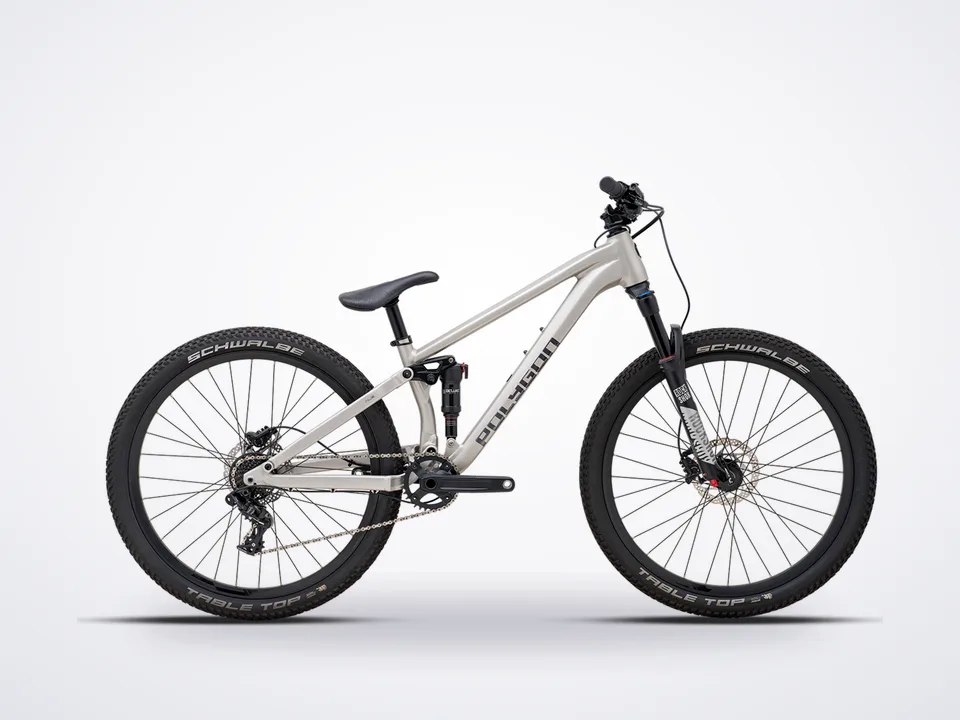

Polygon Trid ZZ

Developed with slopestyle icon Sam Reynolds, the TRID ZZ is proven on the world's biggest slopestyle courses and is equally at home on dirt jumps or the local pump track. The custom-designed ALX alloy frame features a 69-degree tapered head tube, 426mm reach, and a low 331mm BB height that inspires confidence when stomping massive tricks. The ultra-low standover keep things snappy and precise. Whether you're learning your first barspin or sending a 50-foot step-down, the TRID ZZ is built for riders who are serious about progression.Technical Specifications

Frameset: • Frameset: AL6 Slope Style, • Fork: Rockshox PIKE AIR 100MM Travel, • Rear Shock: Rockshox Deluxe Select, E2E: 190mm, • Size: ALL SIZE

Frame Color

Silver

Decal Color

Grey Gloss

Drivetrain: • Shifter: SRAM GX-DH, 7-Speed Trigger, • Crank: Samox TAF15, • Cassette: SRAM PG-720 11-25T, • Rear Derailleur: SRAM GX-DH

BB

BSA Threaded 68/73mm

Chain

KMC X-11

Pedal

One Piece Alloy Body

Cockpit

Saddle

Black, Pivotal

Seatpost

DxL: 30.9 x 200mm

Handlebar

Alloy Handlebar, W: 760mm, BB: 31.8mm, R/D: 38mm, B: 10degree

Handlestem

Alloy STEM, EXT: 40mm, BB: 31.8mm, R/D: 0degree

Headset

FSA Sealed Bearing, ZS 44/28.6 | ZS 56/40

Wheel & Tire

Wheel Set

Alloy Wheels

Wheel Size

26"

Tire

VEE TIRE XCV 26"x2.25 559-57

Rim

559x25C 32H FOR TYRE 559-44/76 W/ Eyelet

• Hub: F: Novatec D041SB-15 15x100mm 32H 6B / R: Formula DCL-360 12x142mm 32H 6B FOR Sprocket
• Spokes: F: 14G Stainless NDS:256mm DS:258mm W/ 12mm Brass Nipple / R: 14G Stainless NDS:258mm DS:258mm W/ 12mm Brass Nipple

Brake: • Brake Lever: Shimano MT501, • Brake Caliper: Shimano Hydraulic DISC Brake, • Rotor: SMRT56, Geometry

Height (cm)

172-185

Seat Tube Length (A)

330

Seat Tube Angle (B)

70

Effective Seat Tube Angle (C)

75

Head Tube Length (D)

120

Head Tube Angle (E)

69

Effective Top Tube (F)

575

Bb Height (G)

331

Bb Offset (H)

8

Chainstay Length (I)

400

Wheelbase (J)

1079.1

Frame Reach (K)

425

Frame Stack (L)

558.5

Standover Height (M)

649
