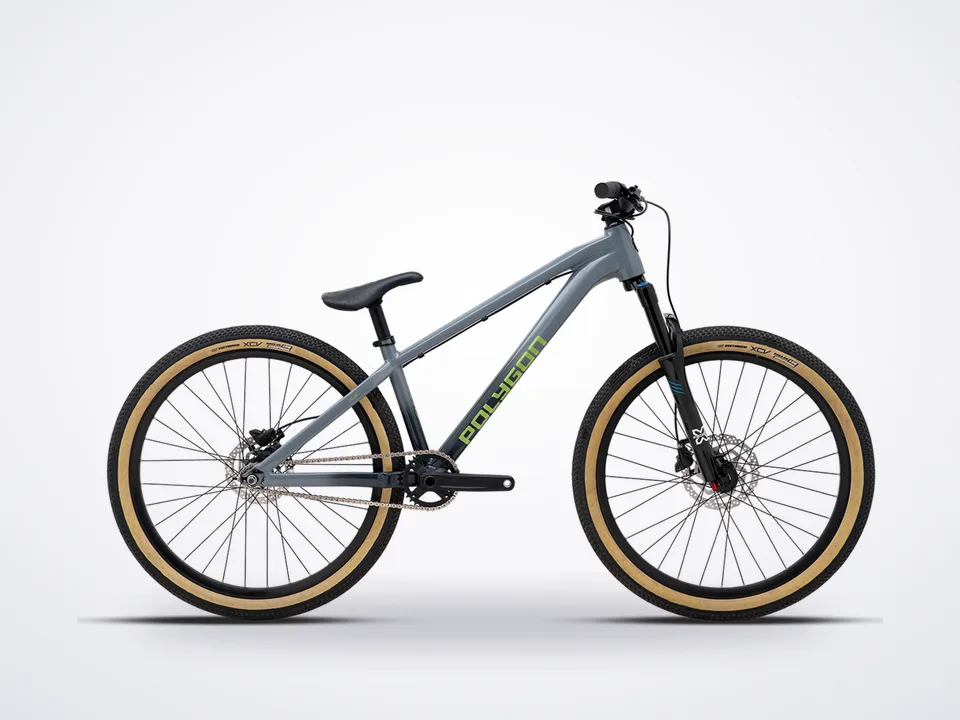

Polygon Trid
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Description
- Trid
- The Jump Bike that Does it All
Front Suspension | 26 Inch Wheels | AL6 Alloy
Developed, tested and tweaked by Sam Reynolds himself, the Polygon TRID is built for the dirt jumps, pump track, skatepark and street riding. Expect versatile, dependable riding that works for everyone from beginners to seasoned pros.
Built around the proven TRID frame, and loaded with features every dirt jump rider expects. The TRID is one bike that truly does it all!Technical Specifications
Frameset: • Frameset: AL6 DIRT JUMP, • Fork: X-Fusion Slant AIR 100MM Travel, • Size: ALL SIZE, • Frame Color: GREY
Show full description and specs
- Decal Color
- Green Gloss
Drivetrain: • Crank: Samox TAF38, 32T, • Cassette: 2.3x14T COG, • BB: BSA Threaded 68/73mm, • Chain: KMC HALF LINK
- Pedal
- One Piece PP Body
Cockpit
- Saddle
- Black, Pivotal
- Seatpost
- DxL: 30.9 x 200mm
- Handlebar
- Alloy Handlebar, W: 760mm, BB: 31.8mm, R/D: 3mm, B: 10degree
- Handlestem
- Alloy STEM, EXT: 40mm, BB: 31.8mm, R/D: 0degree
- Headset
- Sealed Bearing, ZS 44/28.6 | ZS 56/40
Wheel & Tire
- Wheel Set
- Alloy Wheels
- Wheel Size
- 26"
- Tire
- VEE TIRE XCV 26"x2.25 559-57
- Rim
- 559x25C 32H FOR TYRE 559-44/76 W/ Eyelet
- Hub: F: Novatec D041SB-15 15x100mm 32H 6B / R: KT HUB KT-MI5R 3/8x135mm 32H 6B FOR Single Sprocket
- Spokes: F: 14G Stainless NDS:256mm DS:258mm W/ 12mm Brass Nipple / R: 14G Stainless NDS:258mm DS:258mm W/ 12mm Brass Nipple
Brake: • Brake Lever: Shimano MT201, • Brake Caliper: Shimano Hydraulic DISC Brake, • Rotor: SMRT26SP, Geometry
- Height (cm)
- 172-185
- Seat Tube Length (A)
- 330
- Seat Tube Angle (B)
- 72
- Effective Seat Tube Angle (C)
- 72
- Head Tube Length (D)
- 120
- Head Tube Angle (E)
- 70
- Effective Top Tube (F)
- 600
- Bb Height (G)
- 327
- Bb Offset (H)
- 12
- Chainstay Length (I)
- 385
- Wheelbase (J)
- 1043.2
- Frame Reach (K)
- 416.7
- Frame Stack (L)
- 563.27
- Standover Height (M)
- 651.9
