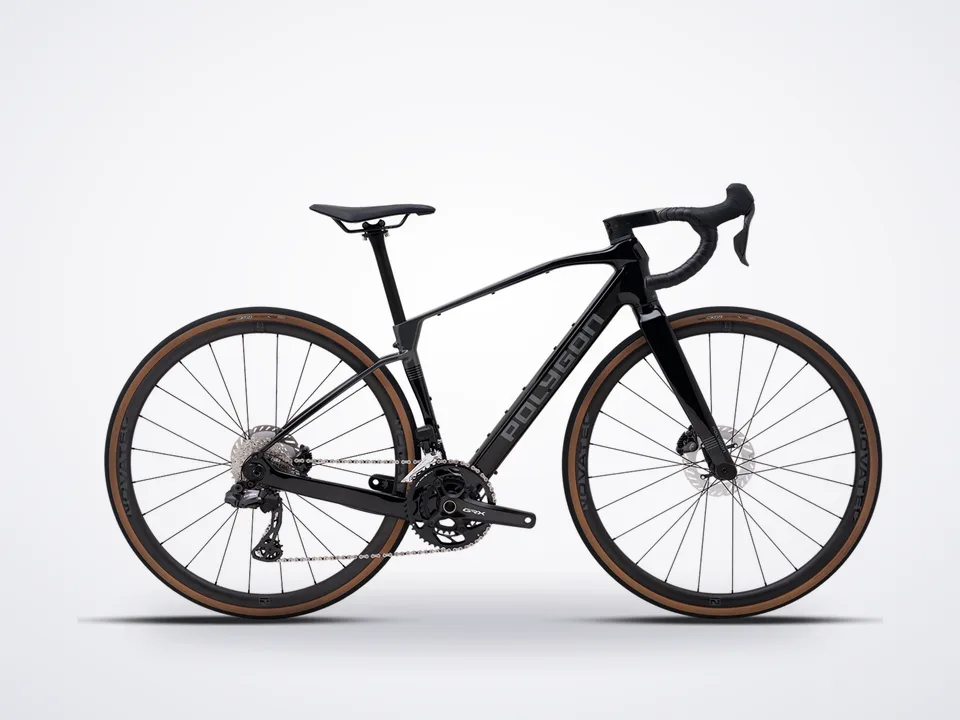

Polygon Tambora A9X
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Description
- Tambora
- Our Most Versatile Gravel Machine
Gravel | ACX & ALX Frames | 12 Available Builds
Whether you're a long-distance enthusiast or an adventurous explorer, the Tambora is here for all your gravel needs. Flip chips at the rear dropouts and fork base let you switch between gravel and all-road geometry in minutes, making the Tambora genuinely two-bikes-in-one. With 14 universal mounting points across the frame, it's ready to carry everything your adventure demands.Technical Specifications
Frameset: • Frameset: ACX Gravel, • Fork: Carbon Rigid, • Size: S, M, L, XL, • Frame Color: Black
Show full description and specs
- Decal Color
- Charcoal
Drivetrain: • Shifter: Shimano GRX Di2 ST-RX825, 2x12-Speed Brifter, • Crank: Shimano GRX FC-RX820, 48x31T, • Cassette: Shimano Ultegra CS-R8101, 11-34T, • Rear Derailleur: Shimano GRX Di2 RD-RX825
- BB
- Token T47 FOR 24mm Spindle
- Chain
- Kmc New X-12
Cockpit
- Saddle
- Fizik Terra Argo X7
- Seatpost
- Carbon, DxL: 27.2x400mm
- Handlebar: Blktec R8 Integrated, W: 400mm (S, M) / 420mm ( L, XL), BB: 31.8mm Integrated, R/D: 125mm, B/R: 72mm
- Handlestem: Blktec R8 Integrated, EXT: 100mm (S, M) / 110mm (L-XL), BB: Integrated, R/D: 0 Degree
- Headset
- Token TK155P-36 W/ Sealed Bearing, IS 52/28.6 | IS 52/40
Wheel & Tire
- Wheel Set
- Novatec G24 DISC (28mm) W/ Tubeless TAPE Installed
- Wheel Size
- 700C
- Tire
- Maxxis RE-Fuse 700X32C
- Rim: F: Carbon FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR / R: Carbon FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR
- Hub: F: Novatec D791SB 12x100mm 24H CL / R: Novatec D792SB 12x142mm 24H CL FOR Cassette Sprocket
- Spokes: F: Stainless Double Butted 14G NDS:282mm DS:284mm W/ Nipple Brass / R: Stainless Double Butted 14G NDS:284mm DS:282mm W/ Nipple Brass
Brake: • Brake Lever: Shimano RX825, • Brake Caliper: Shimano GRX RX825 Hydraulic DISC, • Rotor: Shimano CL800, 160mm, Geometry
