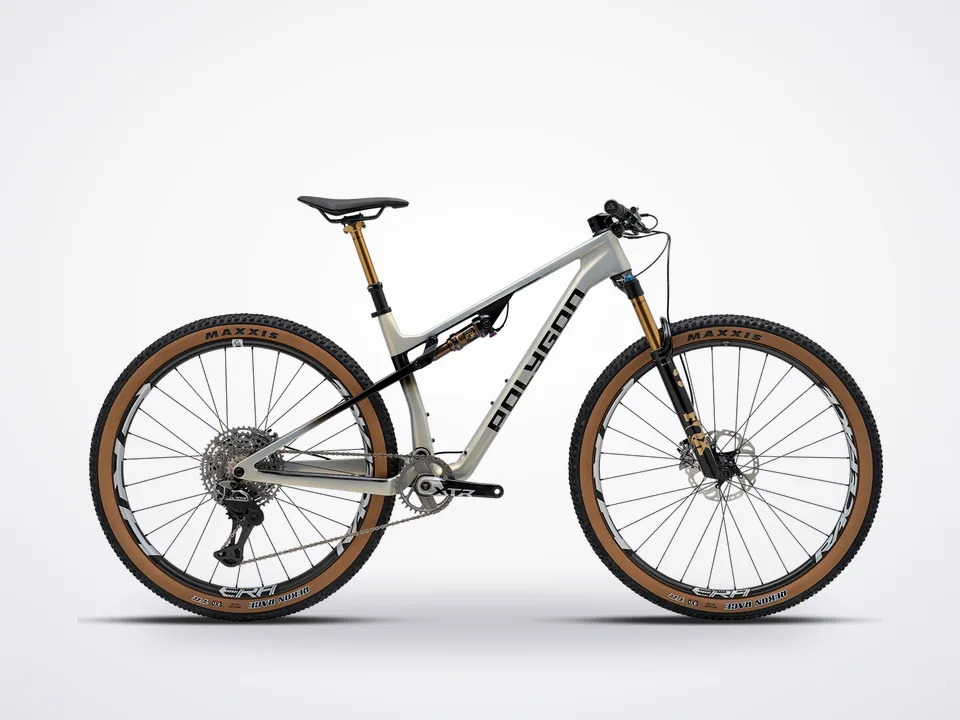

Polygon Syncline DR9 Carbon Full Suspension MTB
In stock at 1 shop in Dublin
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
XC, Reimagined.
- The new generation of Syncline
- An XC, with full-sus control.
Cross-country racing isn’t what it used to be—and neither is the Syncline. The new Syncline DR takes everything we’ve learned from years of UCI racing and builds it into a carbon full- suspension machine made for the speed, precision, and intensity of modern XC. It’s your edge. For race day. For every day. For the chase.
Show full description and specs
Fast But Composed
With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.
No Watt Wasted
Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.
Locked in Precision
Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.
Traction Wherever You Need It
From rocky climbs to muddy sprints, with 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.
Geometry Made For Modern XC
With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.
Specifications
- Frame
- ACX XC 110mm Travel
- Fork
- FOX 34 SL Factory Series 120mm Travel
- Rear Shock
- FOX Float SL Factory Series, E2E: 165x40mm
- Headset
- FSA NO.69/59/Srs/Dual, S.H.I.S. IS 52/28.6 | IS 52/40
- Stem
- FSA KFX 2-BOLT, E: 70mm, BB: 31.8m, R/D: -20degree
- Handlebars
- FSA KFX FLAT Carbon, W: 760mm, BB: 31.8mm, R/D:-
- Wheels
- Race Face Era Carbon
- Rims
- Race Face Era Carbon 622-30 28H W/ Tubeless Ready Rim Tape
Spokes: F: Stainless NDS:305mm DS:305mm W/ 12mm Nipple, R: Stainless NDS:301mm DS:305mm W/ 12mm Nipple
Hubs: F: RACE FACE Vault 415 THRU AXLE 15x110mm 28H Center-LOCK / R: RACE FACE Vault 424 THRU AXLE 12x148mm 28H Center-LOCK
- Tyres
- Maxxis Rekon RACE 29"x2.35"
- Shifter
- Shimano XTR Di2 M9250 I-SPEC EV, 1x12 Speed
- Rear Derailleur
- Shimano XTR Di2 M9250
- Crankset
- Shimano XTR M9200, 34T
- Cassette
- Shimano XTR M9200, 10-51T
- Chain
- Shimano XTR M9100
- Bottom Bracket
- Shimano BB92
- Brakes
- Shimano XTR M9200
- Rotors
- Shimano RT86, R:160mm / F:180mm
- Seatpost
- FOX Transfer SL Factory Series 120mm Travel, DxL: 31.6x455mm
- Saddle
- Fizik Terra ARGO X7, R: CR-MO ø 7mm
Geometry
