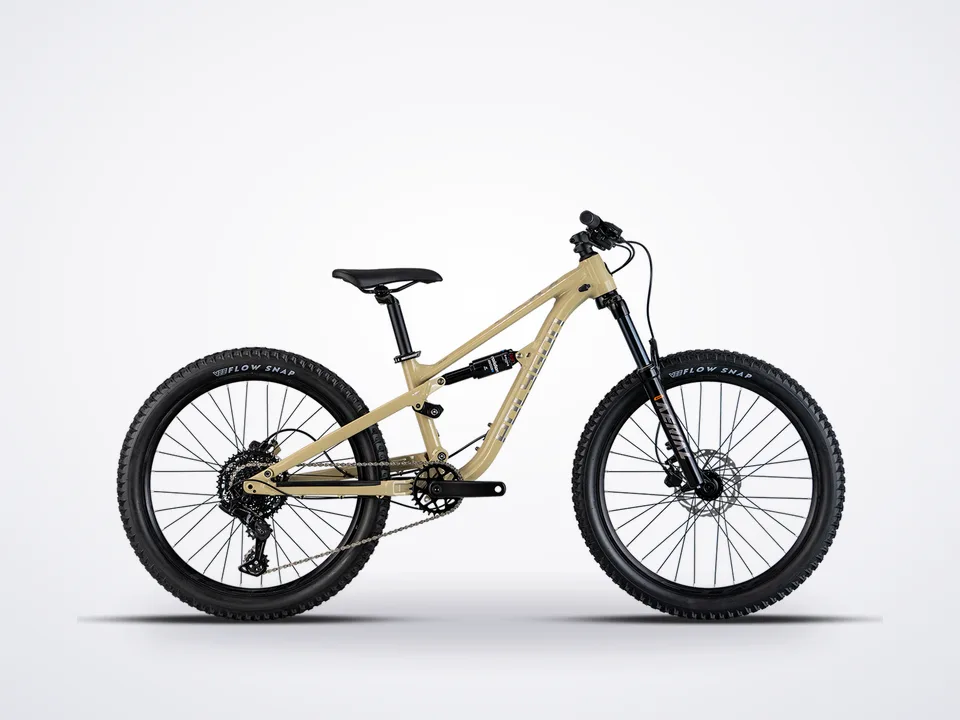

Polygon Siskiu D24
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Description
- Siskiu D24
- For the Next Generation
Junior | 120mm/120mm | ALX Alloy | 24" Wheels
Built to keep up with ambitious young riders, the Polygon Siskiu D24 is the ultimate full-suspension mountain bike for tackling trails and sharpening skills. With a lightweight frame, adjustable air suspension, and reliable components, it’s designed for thrill-seeking and progression on every ride.Technical Specifications
Frameset: • Frameset: ALX Junior 120MM Travel, • Fork: RST Aerial AIR 120MM Travel, • Rear Shock: Suntour RS25 Raidon R AIR, E2E: 190x45mm, • Size: ALL SIZE
- Frame Color
- Cream
- Decal Color
- White
Show full description and specs
Drivetrain: • Shifter: Microshift SL-M6280-R 8-Speed Trigger, • Crank: Prowheel C10Y 30T, • Cassette: Microshift CS-H083 8-Speed 12-42T, • Rear Derailleur: Microshift RD-M5185M 8-Speed
- BB
- 2PCS W/ Cartridge Sealed Bearing & 127,5mm Square
- Chain
- KMC X9
- Pedal
- One Piece PP Body
Cockpit
- Saddle
- Black, Steel ø7mm
- Seatpost
- Polygon Sport, DxL: 30.9 x 250mm
- Handlebar
- Polygon Sport, W: 640mm, BB: 31.8mm, R/D: 20mm, B: 6degree
- Handlestem
- Polygon Sport, EXT: 40mm, BB: 31.8mm, R/D: 7degree
- Headset
- Zero Stack W/ Sealed Bearing, ZS 44/28.6 | ZS 56/30
Wheel & Tire
- Wheel Set
- Polygon MT6
- Wheel Size
- 24"
- Tire
- VEE TIRE FLOW SNAP 24"x2.4 507-62
- Rim
- Alloy Double WALL H: 19.2mm W: 23.3mm 507-
- Hub: F: Solon DH909TF 15x100mm 32H 6B, R: Solon DH909TR 12x142mm 32H 6B FOR Cassette Sprocket
- Spokes: F: 14G Stainless NDS:230mm DS:232mm W/ 12mm Brass Nipple, R: 14G Stainless NDS:232mm DS:230mm W/ 12mm Brass Nipple
Brake: • Brake Lever: Tektro HD-J3120, • Brake Caliper: Tektro Hydraulic DISC Brake, • Rotor: Tektro TR160 160mm 6B, Geometry
- Height (cm)
- 127-142
- Seat Tube Length (A)
- 317
- Seat Tube Angle (B)
- 73.5
- Effective Seat Tube Angle (C)
- 75
- Head Tube Length (D)
- 90
- Head Tube Angle (E)
- 66
- Effective Top Tube (F)
- 493.1
- Bb Height (G)
- 338
- Bb Offset (H)
- 10
- Chainstay Length (I)
- 425
- Wheelbase (J)
- 1053
- Frame Reach (K)
- 350
- Frame Stack (L)
- 534
- Standover Height (M)
- 633
