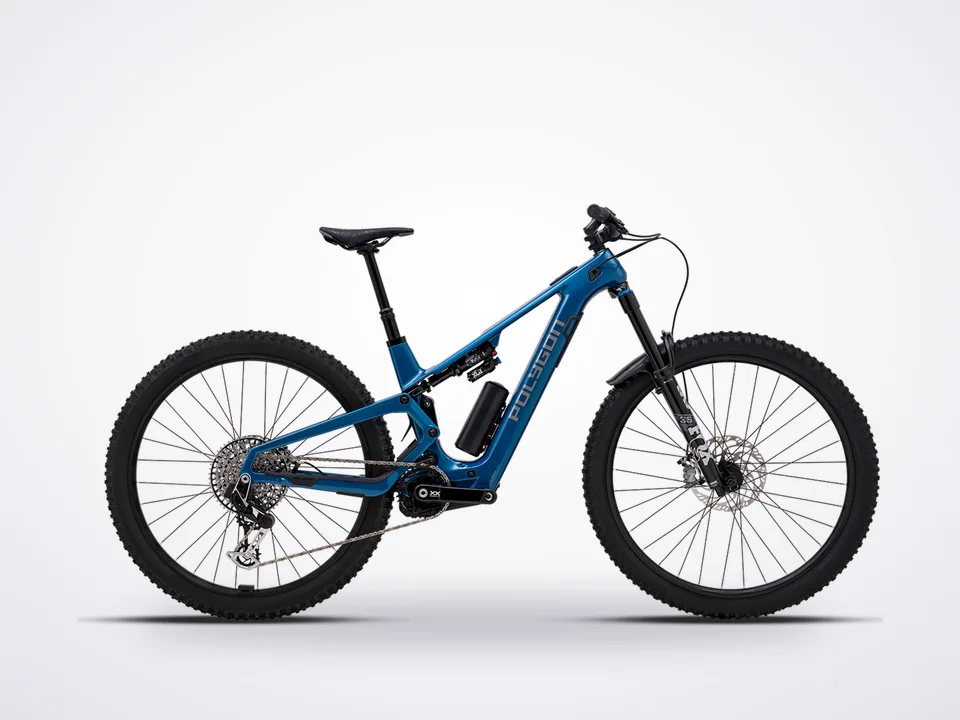

Polygon Collosus TEL 0 CB C1

Drawing inspiration from the success of our Collosus N and DH models, the TLE reintroduces carbon construction and integrates our Independent Floating Suspension (IFS) system, refined to be lighter, stiffer, and more efficient than ever. With a custom-tuned ride feel and dialed-in kinematics, it meticulously balances anti-squat, anti-rise, and a progressive leverage curve to deliver precise climbing efficiency, confident braking, and plush responsiveness on every descent.

Built around a full 29er platform, the TLE features Fox-tuned shocks and a versatile shock yoke for extensive adjustability. It is also future-ready, featuring a Bosch drive system with a range-extender option and a Bosch PowerMore 250Wh battery included as standard so you’re ready for all-day epics and technical alpine adventures alike.Technical Specifications

Frameset

• Frameset: ACX e-MTB

• Fork: FOX Performance Elite 36, Float EVOL, 160mm Travel, Offset: 44mm, HSC-LSC, HSR-LSR, W/ Fender

Rear Shock

FOX Float X Performance Elite, E2E: 210x55mm

Frame Color

Green / Blue

Decal Color

Black Silver

Drivetrain: • Shifter: SRAM EC AXS POD Controller, 1x12-Speed Trigger, • Crank: SRAM XX Carbon T-TYPE, 34T, • Cassette: SRAM XX Eagle T-TYPE 10-52T XD Driver, • Rear Derailleur: SRAM XX Eagle T-TYPE AXS

Chain

SRAM XX T-Type

Cockpit

Saddle

Xtent, CR-MO ø7mm

• Seatpost: Tranz X JD-YSP39KL 170mm (S, M) / 200mm (L, XL) Travel, DxL: 34.9x495mm (S, M) / 556mm (L, XL)

Handlebar

RACE FACE Chester 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree

Handlestem

RACE FACE Affect R 35, EXT: 40mm, BB: 35mm, R/D: 0mm

Headset

FSA NO.42/47/Acb, IS 42/28.6 | IS 52/40

Wheel & Tire

Wheel Set

MT6 Tubeless Ready

Wheel Size

29"

Tire

Maxxis Dissector 29"x2.40" 622x65, TLE

• Rim: F: Alloy Double WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ Tubeless TAPE / R: Alloy Double WALL FV H:18mm 622x36 32H FOR TYRE 622-54/76 W/ Tubeless TAPE
• Hub: F: DT Swiss 370 Hybrid Classic 15x110mm 32H 6-BOLT / R: DT Swiss 370 Hybrid Classic 12x148mm 32H 6-BOLT FOR XD Driver
• Spokes: F: Stainless 14G NDS:292mm DS:294mm W/ 12mm Brass Nipple / R: Stainless 14G NDS:294mm DS:292mm W/ 12mm Brass Nipple

Brake: • Brake Lever: Magura HC3, • Brake Caliper: Magura MT7 Hydraulic DISC, • Rotor: Magura MDR C, 203MM 6-BOLT, Electric Parts

Motor

Bosch Performance Line SX BDU3145

Sensor

Bosch Rim Magnet

Battery

Bosch Compacttube 400 Fixed Mount Horizontal

Geometry
