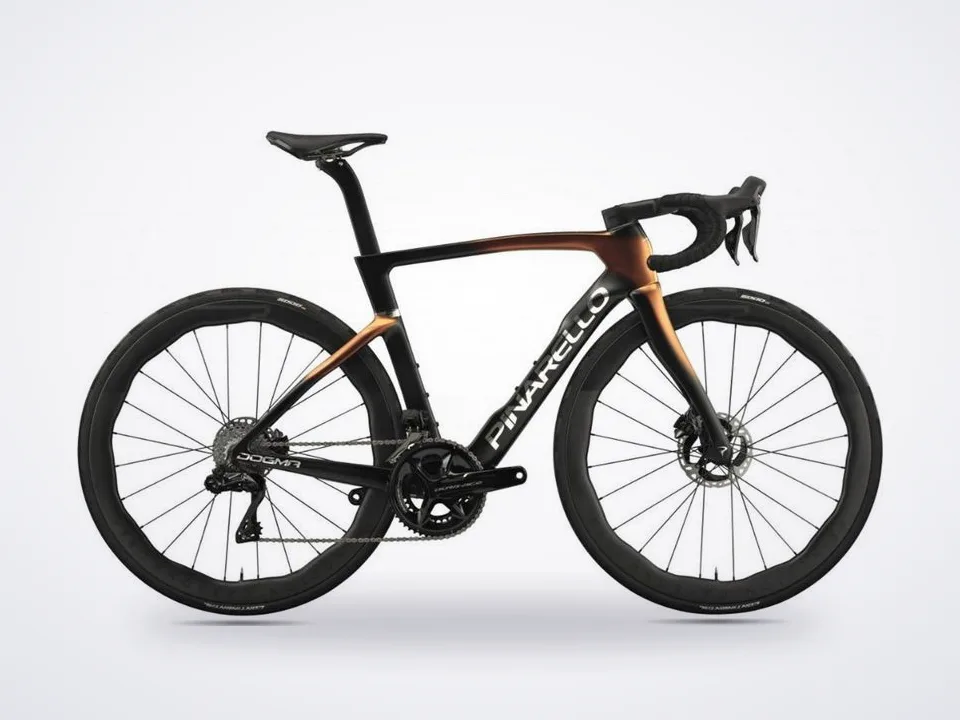

Dogma F DT Swiss ARC 1400

DESIGN THE EXCEPTIONAL Pinarello has always stood out from the crowd and created bikes that are totally unique, both in terms of how they look, but more importantly, how they perform. Form over function is a constant source of discussion between their head designers and Pinarello believes the Pinarello DOGMA F Shimano Dura Ace Di2 12 Speed Road Bike achieves the perfect blend of the two. • Carbon M40X - The DOGMA evolves, changing its skin to surprise you one more time. We tested this new carbon fiber lay-up our X-Light models and Ineos Grenadiers team bikes. This new fibre has an exceptional tensile module that allowed us to reach the next level of lateral stiffness performance on the latest generation of our DOGMA F. • Down Tube - The downtube has been completely redesigned to reduce the thickness and therefore improve the frontal aerodinamic performance of the frame and the aero drag • New Aero-Keel BB - Trickle-down technology from the Hour Record, The new DOGMA F down tube is rotated by 3.5°, to create a keel shape that improves the aero performance of the BB area by 1.2%. • Top Tube - Our unique head tube “nose” shape, introduced first on the DOGMA F8 in 2014, evolves again, reducing the volume and the width of of the nose area by 8mm with a more streamlined design to improve the frontal aero penetration. • Headset - To reduce so much the width of headtube we had to design an innovative elliptical steering tube and a completely new headset with differentiated bearings diameter, wider on the bottom and narrower at the top. • Thru Axles - New shorter thru axles. The bolt on the righ side of the fork has been integrated in the carbon eliminating the external hole. Same has been done also on the frame with the additional integration of the rear derailleur dropout. This solution improves both design and aero performances of the frame • Onda Fork - The new slimmer fork design improves aerodynamics, with a 47mm rake, tested with pro rider feedback to improve handling…
