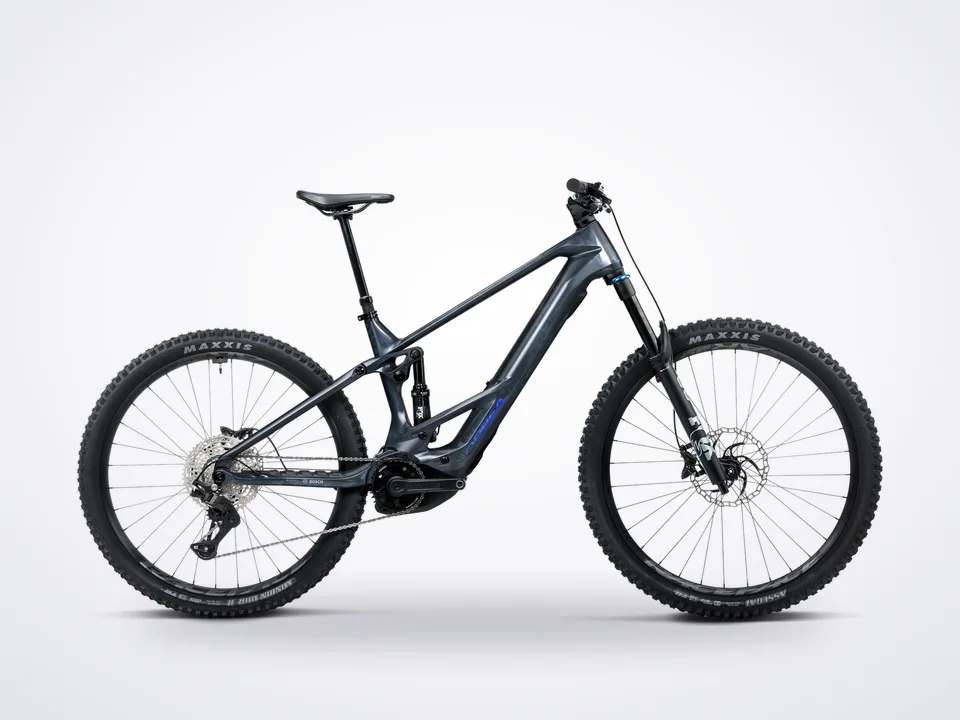

Orbea Wild TR M20 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Wild TR M20 is a full-power electric trail mountain bike built around Orbea's lightweight Wild OMR carbon frame. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, the Wild TR pairs long-range, high-torque pedal assist with 150mm of trail-tuned travel and full 29" wheels for confident, all-day riding on technical terrain.
Show full description and specs
Bosch Performance CX Power, All-Day Range
The Bosch Performance Line CX (Gen 5) motor delivers smooth, natural assistance and up to 120Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and Bosch System Controller give you the range and ride data to go bigger and stay out longer. An optional 250Wh Range Extender pushes total capacity to 1000Wh. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.
Lightweight OMR Carbon, 150mm Trail Travel
Orbea's Wild OMR carbon frame trims weight and adds stiffness for a livelier, more precise ride. With 150mm of travel from a Fox 36 Float Performance fork and Fox Float Performance shock and big 29" wheels, the M20 climbs efficiently and stays composed on fast, rough descents.
Trail-Ready Build
Shimano Deore M7200 12-speed shifting, 4-piston Shimano MT420 hydraulic disc brakes, grippy Maxxis Assegai 2.5" MaxxGrip tires, Race Face AR30 tubeless-ready wheels, and a dropper-ready cockpit mean it's ready to ride hard right out of the shop.
- Available in three colorways
- Carbon - Blue, White - Carbon, and Rose - Carbon - in sizes S-XL.
Key Features
- Orbea Wild OMR carbon frame
- Bosch Performance Line CX motor (Gen 5, up to 120Nm) with 750Wh PowerTube battery and Bosch System Controller
- Class 1 / 20mph pedal-assist eMTB
- 150mm travel, full 29" wheels
- Fox 36 Float Performance fork + Fox Float Performance shock
- Shimano Deore M7200 12-speed drivetrain
- Maxxis Assegai 2.5" MaxxGrip tires, Shimano MT420 4-piston brakes
- Race Face AR30 tubeless-ready wheels
- Dropper-ready cockpit (Shimano SL-MT500 lever included)
Build Kit
- Frame
- Orbea Wild OMR Carbon, 29" Wheels, Concentric Boost 12x148
- Fork
- Fox 36 Float Performance, GRIP 3-Pos, 150mm, 15x110
- Rear Shock
- Fox Float Performance Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
- Headset
- Alloy 1-1/2", Black Oxidated Bearing
- Motor
- Bosch Performance Line CX (BDU3843)
- Battery
- Bosch PowerTube 750Wh Horizontal
- Display
- Bosch System Controller + Mini Remote
- Crank
- e*thirteen Helix Core
- Chainguide
- e*thirteen Bosch CX Gen5 CL55 32-36t
- Shifter
- Shimano Deore M6200 I-Spec EV
- Rear Derailleur
- Shimano Deore M7200 SGS Shadow Plus
- Cassette
- Shimano CS-M6200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Handlebar
- OC Mountain Control MC30, Rise 20mm, Width 800mm
- Stem
- OC Mountain Control MC21, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- Brakes
- Shimano MT420 Hydraulic Disc
- Wheels
- Race Face AR 30c, Tubeless Ready
- Tires
- Maxxis Assegai 2.50" 60TPI, 3C MaxxGrip, EXO+ TR
- Saddle
- Fizik…
