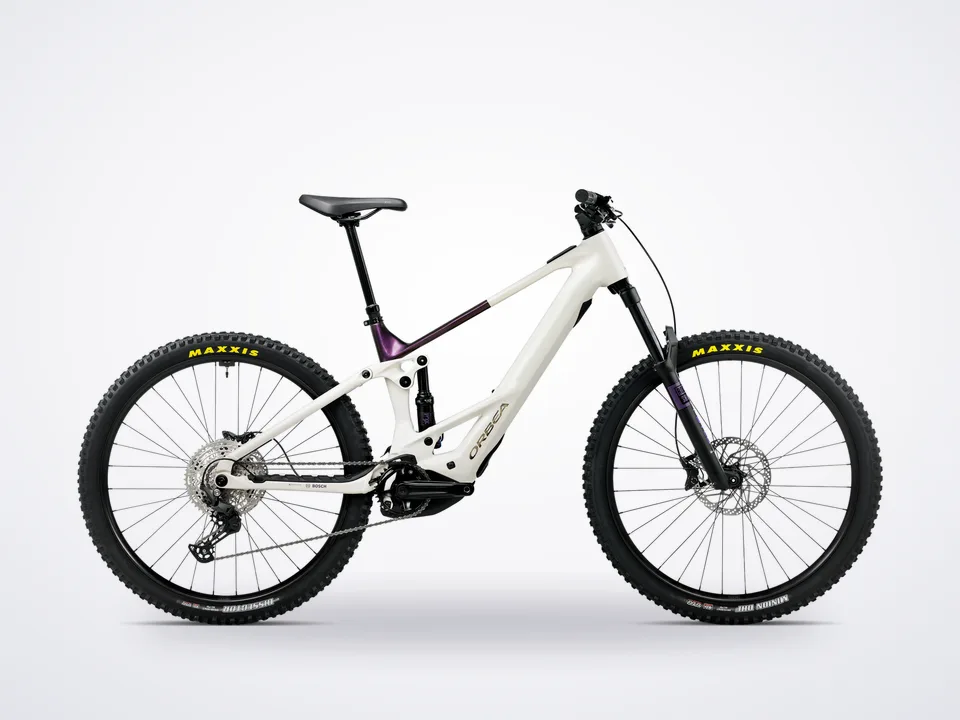

Orbea Wild TR H20 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Wild TR H20 is a full-power electric trail mountain bike built to climb efficiently and let loose on the way down. Powered by the Bosch Performance Line CX motor and a 750Wh PowerTube battery, the Wild TR pairs long-range, high-torque pedal assist with full 29" wheels and Orbea's Wild Hydro aluminum frame for confident, all-day riding on technical terrain.
Show full description and specs
Bosch Performance CX Power, All-Day Range
The Bosch Performance Line CX motor delivers smooth, natural assistance and 85Nm of torque for steep, technical climbs, while the integrated 750Wh PowerTube battery and Bosch System Controller give you the range and ride data to go bigger and stay out longer. As a Class 1, 20mph pedal-assist e-MTB, it's trail-legal wherever Class 1 ebikes are allowed.
29er Geometry, Trail Capability
Big 29" wheels roll fast and hold momentum through rough, technical terrain. With a RockShox Psylo Silver RC fork, Fox Float Performance shock, and Orbea's Wild Hydro aluminum frame, the H20 is dialed for confident climbs and descents on all-day trail rides.
Trail-Ready Build
Shimano Deore M6200 12-speed shifting, powerful 4-piston Shimano MT420 hydraulic disc brakes, grippy Maxxis Minion DHF 2.5" tires, and a dropper-ready cockpit mean it's ready to ride hard right out of the shop.
Available in three colorways: White Cream / Sunset (Gloss), Metallic Rust (Matt/Gloss), and Titanium Grey / Fantasy Purple - in sizes S-XL.
Key Features
- Bosch Performance Line CX motor (85Nm) with 750Wh PowerTube battery and Bosch System Controller
- Class 1 / 20mph pedal-assist eMTB
- Full 29" wheels
- RockShox Psylo Silver RC fork + Fox Float Performance shock
- Orbea Wild Hydro aluminum frame
- Shimano Deore M6200 12-speed drivetrain
- Maxxis Minion DHF 2.5" tires, Shimano MT420 4-piston brakes
- Dropper-ready cockpit (Shimano SL-MT500 lever included)
Build Kit
- Frame
- Orbea Wild Hydro Aluminum, 29" Wheels, Concentric Boost 12x148
- Fork
- RockShox Psylo Silver RC, 15x110 Boost
- Rear Shock
- Fox Float Performance Trunnion 2-Pos Evol LV Custom Tune, 205x57.5mm
- Headset
- Alloy 1-1/2"
- Motor
- Bosch Performance Line CX (BDU3843)
- Battery
- Bosch PowerTube 750Wh
- Display
- Bosch System Controller + Mini Remote
- Charger
- Bosch 2A Charger
- Crank
- Prowheel EB17 Alloy
- Chainguide
- e*thirteen Bosch CX Gen5 CL55 32-36t
- Shifter
- Shimano Deore M6200 I-Spec EV
- Rear Derailleur
- Shimano Deore M6200 SGS Shadow Plus
- Cassette
- Shimano CS-M6200 10-51T, 12-Speed
- Chain
- Shimano M6100
- Handlebar
- OC Mountain Control MC30, Rise 20mm, Width 800mm
- Stem
- OC Mountain Control MC21, 0°
- Computer Mount
- OC Computer Mount CM-05 (Garmin/Sigma Compatible)
- Brakes
- Shimano MT420 Hydraulic Disc
- Wheels
- WH23 Alloy, Tubeless Ready, 29", 32H
- Tires
- Maxxis Minion DHF 2.50" 60TPI, EXO/TR
- Saddle
- Selle Royal Vivo Sport 145 x 269mm
- Seatpost Lever
- Shimano SL-MT500 I-Spec EV (dropper-ready)
- Grips
- OC Lock-On
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150–175 cm…
