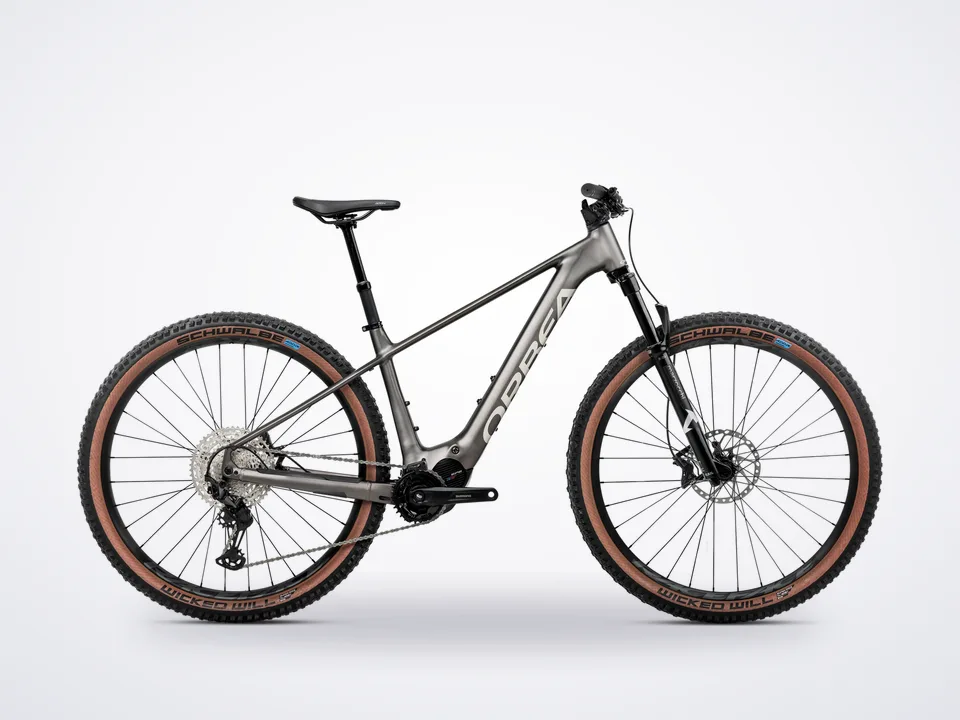

Orbea Urrun 10 20mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Urrun 10 is a full-power electric trail hardtail built for riders who want strong torque, big range, and the simple, durable feel of a hardtail. Built on Orbea's aluminum Urrun frame with a 120mm fork and powered by Shimano's EP600 motor with an integrated 630Wh battery, it delivers smooth, natural full-power assistance with low-maintenance hardtail efficiency - and as the top-spec Urrun it comes with the line's best components.
Show full description and specs
Shimano EP600 Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque and 500W of peak power with smooth, quiet, natural-feeling support, so the Urrun 10 climbs confidently and extends your range on every ride. The integrated 630Wh battery gives you the miles to explore farther, and as a Class 1, 20mph pedal-assist eMTB it's trail-legal wherever Class 1 ebikes are allowed.
Capable Trail Hardtail, 120mm Travel
With 120mm of front travel from a Marzocchi Bomber Z2 air fork and Orbea's lightweight aluminum Urrun frame, the Urrun 10 is built to rip flowy trails and tackle technical climbs. Modern trail geometry and 29" wheels roll over obstacles and keep you stable and confident, while the hardtail rear keeps the bike efficient and easy to maintain.
Top-Tier Shimano XT Build
The Urrun 10 runs Shimano's XT M8200 12-speed drivetrain, powerful Shimano MT620 4-piston hydraulic disc brakes, a dropper post, and grippy 29" Race Face AR tubeless-ready wheels - the best-equipped Urrun, ready to ride out of the shop.
Available in three colorways: Magnetic Bronze (Matt) / Silver (Gloss), Tanzanite / Blue (Gloss), and Mars Red (Matt) / Cosmic Bronze (Gloss) - in sizes S-XL.
Key Features
- Shimano EP600 motor (up to 85Nm, 500W peak) with integrated 630Wh battery
- Class 1 / 20mph pedal-assist eMTB
- 120mm front travel trail hardtail
- Marzocchi Bomber Z2 air fork
- Aluminum Orbea Urrun frame, 29" wheels
- Shimano XT M8200 12-speed drivetrain
- Shimano MT620 4-piston hydraulic disc brakes
- Race Face AR 30c tubeless-ready wheels
- Dropper seatpost included
- Fizik Aidon saddle
Build Kit
- Frame
- Orbea Urrun, Aluminum, 29"
- Fork
- Marzocchi Bomber Z2, 120mm, QR15x110, E-Bike Optimized
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 630Wh
- Display
- Shimano EN600
- Charger
- Orbea 2nd-Generation eBike Smart Charger 42V/2-4A
- Crank
- Shimano Steps EM600
- Rear Derailleur
- Shimano XT M8200 SGS Shadow Plus (12-Speed)
- Shifter
- Shimano XT M8200 I-Spec EV
- Cassette
- Shimano CS-M6200 10-51t 12-Speed
- Chain
- Shimano M6100
- Brakes
- Shimano MT620 4-Piston Hydraulic Disc
- Stem
- OC Mountain Control MC21, 0º
- Handlebar
- OC Mountain Control MC31, Rise 20, Width 800
- Wheels
- Race Face AR 30c Tubeless Ready, 29"
- Saddle
- Fizik Aidon 208x145mm
- Seatpost
- Dropper post with Shimano SL-MT500 I-Spec EV remote
- Pedals
- VP-537
- Sizing
- Orbea's recommended rider height by size (approximate):
- S: 150-170 cm (4'11"-5'7")
- M: 160-180 cm (5'3"-5'11")
- L: 170-190 cm (5'7"-6'3")
- XL
- 180-200 cm…
