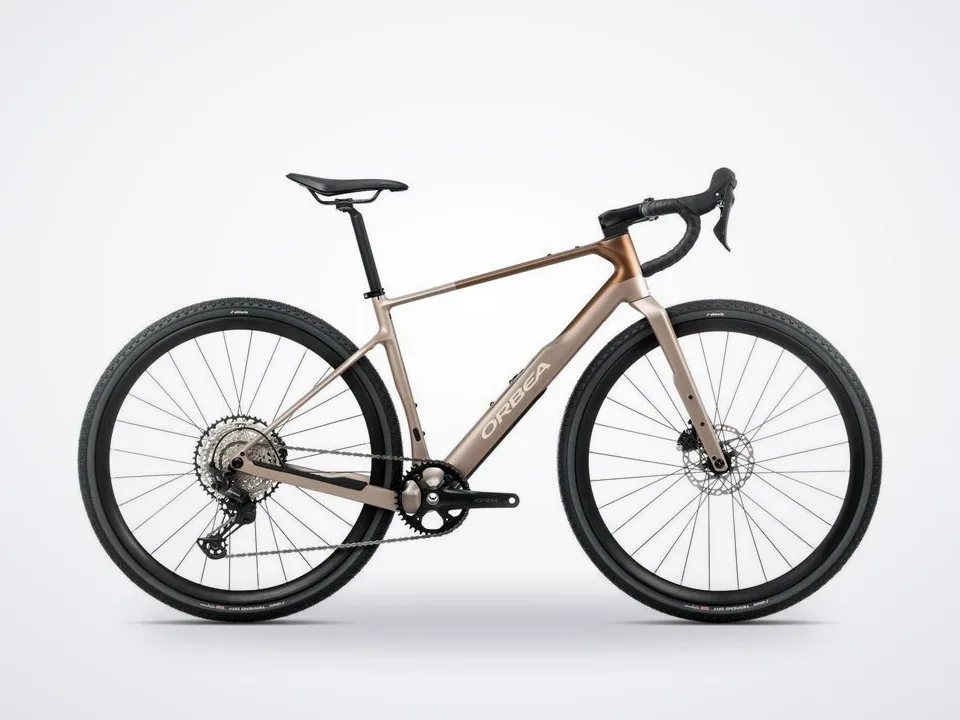

Orbea Terra M30Team 1X
In stock at 3 shops in Boulder and Los Angeles and Salt Lake City
Prices and stock checked Oct 22.
Where to buy
3 shopsAbout this bike
The 2027 Orbea Terra M30TEAM 1X brings the lightweight Terra OMR carbon frame together with a clean 1x Shimano GRX 12-speed setup and a wide 10-51t cassette. It's a simple, capable, race-ready carbon gravel bike with huge climbing range and a drop-free cockpit.
Terra OMR Carbon Frame
The Terra OMR monocoque carbon frame is light and gravel-tuned, with internal routing, BB386EVO, a UDH dropout, power-meter compatibility, an integrated Lockr downtube storage compartment, plus MMS accessory and fender mounts. The full-carbon Terra Race ICR fork keeps the front end light and composed.
Show full description and specs
1x Shimano GRX 12-Speed Drivetrain
A 1x12 Shimano GRX RX822 drivetrain with a wide 10-51t cassette gives massive gear range with a clean, drop-free single-ring cockpit. Hydraulic disc brakes provide strong, modulated control.
Gravel-Ready Roll
Tubeless-ready 700c wheels and grippy Vittoria Terreno T30 700x45c tires keep the Terra M30TEAM 1X confident on steep, loose, and technical terrain.

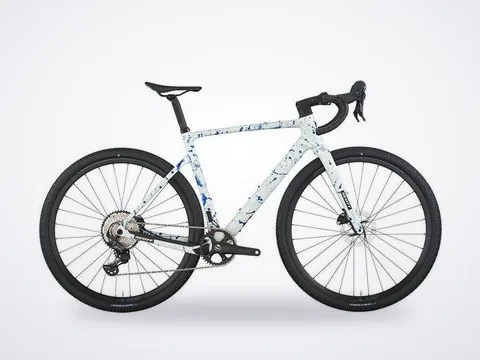

Available in three colorways: Nickel - Met Cinnamon, Acid Gum - Fantasy Purple Carbon View, and Caramel Carbon View - plus a custom MyO option - in sizes XS-XXL.
Key Features
- Orbea Terra OMR monocoque carbon frame, 12x142, internal routing, UDH, power-meter ready, Lockr storage
- Orbea Terra Race ICR full-carbon fork, 12x100
- 1x12 Shimano GRX RX822 gravel drivetrain, wide 10-51t range
- Hydraulic disc brakes
- Tubeless-ready 700c wheels
- Vittoria Terreno T30 700x45c gravel tires
- Gravel geometry, sizes XS-XXL
Build Kit
- Frame: Orbea Terra OMR monocoque carbon, 12x142, internal routing, UDH, power-meter compatible, Lockr storage, MMS + fender mounts
- Fork
- Orbea Terra Race ICR full carbon, 12x100
- Brakes
- Shimano RX410 Hydraulic Disc
- Rear Derailleur
- Shimano GRX RX822 SGS
- Shifters
- Shimano GRX RX610
- Cassette
- Shimano CS-M7200 10-51t 12-Speed
- Chain
- Shimano M6100
- Wheels
- Alloy, Tubeless, 700c
- Tires
- Vittoria Terreno T30 700x45c
- Saddle
- Fizik Terra Argo X7
- Seatpost
- SP 0.2 Carbon, 27.2mm
- Handlebar
- OC Gravel GR31
- Stem
- OC Road Performance RP23
- Headset
- FSA 1-1/2" Integrated Aluminium
- Sizing
- Orbea's recommended rider height by size (approximate):
- XS
- 155-166 cm (5'1"-5'5")
- S: 167-172 cm (5'6"-5'8")
- M: 173-179 cm (5'8"-5'10")
- L: 180-185 cm (5'11"-6'1")
- XL
- 186-191 cm (6'1"-6'3")
- Xxl
- 192-207 cm (6'4"-6'9")
Frequently Asked
- What's the advantage of 1x? A single front chainring keeps the cockpit clean and drop-free - ideal for rough, technical gravel.
- Does 1x have enough range? Yes - the wide 10-51t cassette handles steep climbs and fast descents.
- What is the Lockr compartment? An integrated downtube storage door for tools, tubes, and snacks.
- Can I add a power meter? Yes - the frame is power-meter compatible.
- How does it compare to the standard M30TEAM? Same carbon frame and price - the 1X swaps the 2x12 for a single-ring 10-51t drivetrain for simplicity and climbing range.
- What's new for 2027? Shimano GRX 1x12 spec and new 2027 Terra…
