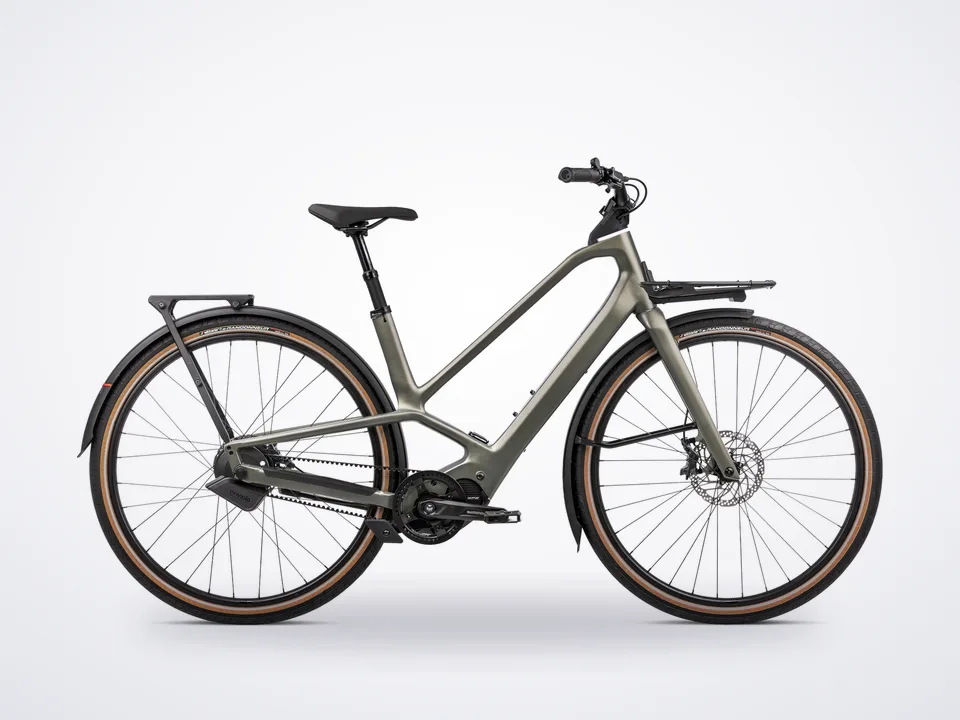

Orbea Diem 10 28mph
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The 2027 Orbea Diem 10 is Orbea's flagship urban e-bike - a premium city commuter engineered to make every A-to-B a pleasure. Built on Orbea's aluminum Diamond Glide frame with a full-carbon fork and powered by a Shimano EP600 motor with an integrated 630Wh battery, it pairs effortless long range with a refined, near-silent, low-maintenance ride and fully integrated lighting.
Show full description and specs
Shimano Full-Power Assist
The Shimano EP600 drive unit delivers up to 85Nm of torque with smooth, quiet, natural-feeling assistance, flattening hills and keeping you fresh on every commute. The 630Wh battery is built into the downtube for a clean, balanced, theft-resistant package, with an optional 252Wh range extender for even bigger days. As a Class 3 (28 mph) pedal-assist e-bike, the Diem 10 keeps pace with city traffic.
Automatic, Maintenance-Free Drivetrain
The Diem 10 runs an Enviolo Automatiq continuously variable hub paired with a Gates CDX carbon belt drive - no chain, no shifting, no grease. The hub adjusts itself automatically to hold your chosen pedaling cadence, while the belt runs clean and silent for years with virtually no maintenance.
Designed-In Safety & Comfort
The patented Diamond Glide frame flexes vertically to absorb bumps, while wide Schwalbe Marathon tires and a suspension dropper post smooth out rough streets. Integrated StVZO wraparound lighting keeps you seen day or night, and an integrated kickstand, Spinblock steering limiter, USB-C charging and AirTag-ready mount round out a city bike that's as practical as it is polished.
- Available in three colorways
- Spaceship Green, Ivory White, and Anthracite Glitter - in sizes S-XL.
Key Features
- Shimano EP600 full-power motor (up to 85Nm) with integrated 630Wh battery
- Class 3 / 28mph pedal-assist e-bike
- Aluminum Orbea Diem Diamond Glide frame, full-carbon fork
- Enviolo Automatiq automatic CVT hub with Gates CDX carbon belt drive
- Shimano MT420 hydraulic disc brakes
- Integrated StVZO wraparound lighting, front and rear
- Suspension dropper post, integrated kickstand, USB-C charging, AirTag-ready
Build Kit
- Frame
- Orbea Diem Aluminum 6061, Diamond Glide
- Fork
- Orbea Diem full carbon
- Motor
- Shimano EP600 (up to 85Nm)
- Battery
- Orbea Internal 630Wh (optional 252Wh range extender)
- Display/Remote
- Shimano EN600
- Drivetrain
- Enviolo Automatiq automatic CVT hub
- Belt
- Gates CDX carbon belt drive
- Brakes
- Shimano MT420 Hydraulic Disc
- Crank
- Shimano Steps
- Wheels
- Alloy, 32H
- Tires
- Schwalbe Marathon 50-622, reflective
- Seatpost
- Suspension Dropper DP01, 31.6mm (Shimano SL-MT500 remote)
- Handlebar
- Orbea Urban, integrated light, 720mm
- Lighting
- Integrated StVZO wraparound front and rear
- Sizing
- Orbea recommended rider height by size (approximate):
- S: 153-172 cm (5'0"-5'8")
- M: 164-183 cm (5'5"-6'0")
- L: 176-195 cm (5'9"-6'5")
- XL
- 187-204 cm (6'2"-6'8")
Frequently Asked
- How fast is the Orbea Diem 10? It's a Class 3 e-bike with pedal assist up to 28 mph.
- What motor and battery…
