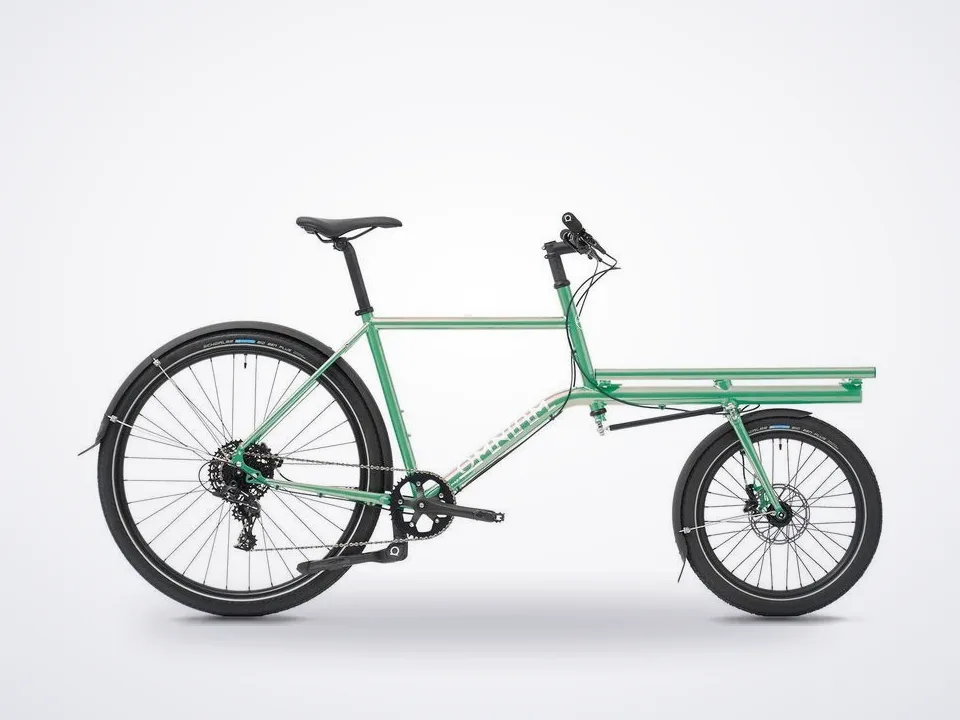

Omnium Mini-Max V3
In stock at 1 shop in Manchester
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Mini-Max V3 everybody! The same fast and light Omnium as you know it, now with adjustable rocker dropouts!With the big comfy tires and trusty thru axles of the WiFi, now combined with the new super functional dropouts, we once again we feel we’ve created the ultimate cargo bike where versatility is at the top of the list.
Show full description and specs
The adjustable rocker dropouts allow you to run a variety of drivetrain options (sorry not simultaneously), ranging from external gears with a derailleur to internal gears and belt drive! Heck you can even run it fixed if you’re that type of nut! The swappable inserts allow you to chose between thru axle and quick release depending on your rear hub spacing and gear component choice. Maybe even carry a spare set to easily replace a broken gear hanger if need be.
The Mini-Max is the middle child of the lot, with the best of both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.
Though the rack lacks the horns seen on the Cargo, it retains extender bar compatibility, and can still take some pretty impressive loads!
The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.
The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.
Size Guide
- Height
- 155 – 165cm | We recommend: size X-Small
- Height
- 165 – 175cm | We recommend: size Small
- Height
- 175 – 185cm | We recommend: size Medium
- Height
- 185 – 195cm | We recommend: size Large
- Height
- 195 – 205cm | We recommend: size X-Large
Frame Specifications
- Frame material
- Double-Butted Chromoly Steel Frame
5 Sizes: XS, S, M, L, XL
- Standard Rack Weight
- 1320g +/-
- Rack dimensions
- 83cm x 50cm
- Seat post diameter
- 31.6 mm
- Seat post clamp size
- 34.0 mm
Rear Wheel: TA Insert: 622, 12 x 142mm spacing, disc onlyQR Insert: 622, 10 x 135mm spacing, disc only
- Front Wheel
- 406, 15 x 100 mm spacing, disc only
- Tyre clearance, front
- 55mm with mudguards
- Tyre clearance, rear
- 55mm with mudguards
- Thru Axle Rear
- 12×142, 172mm long, 19mm thread length, 1.75mm pitch
- Thru Axle Front
- 15×100, 125mm long, 17mm thread length, 1.5mm pitch
- Fork headset
- 1 1/8″ Threaded Integrated with locking cap
- Steerer headset
- 1 1/8″ Ahead
- Bottom Bracket
- BSA 68mm
- Q-Factor/Stance
- 145mm
- Gears
- For 1x rear derailleur gear system
- Standard Rack Weight
- 1320g +/-
- Rack dimensions
- 83cm x 50cm
- Rack bolt size
- M15 x 15mm
- Weight
- Complete Medium bike weighs 20kg
Maximum loading weight on front rack: 85 kg
Maximum total loading weight incl. rider: 175 kg
