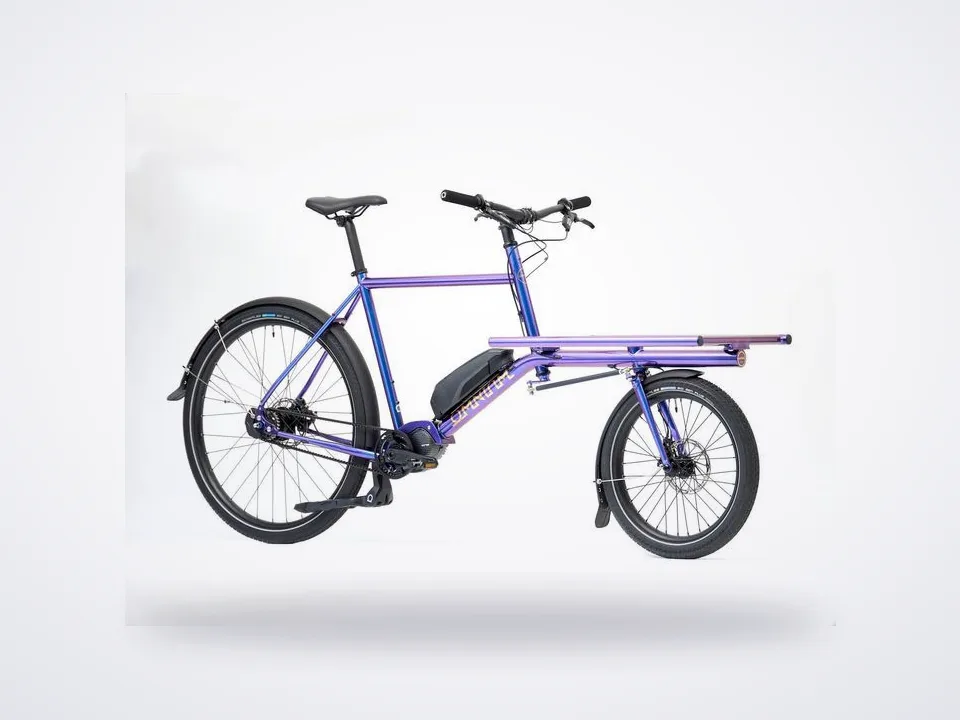

Omnium E-Mini-Max V3
In stock at 1 shop in Manchester
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Mini-Max is the middle child of the lot, with the best of both the Cargo and Mini. The shorter wheelbase makes it handle more like a normal bike, resulting in a tighter turn radius and increased manoeuvrability.
Though the rack lacks the horns seen on the Cargo, it retains extender bar compatibility, and can still take some pretty impressive loads!
The fact that the front wheel is positioned more in the middle of the rack is positive for steering and handling, while stability during heavy loads is slightly less than that of the Cargo.
Show full description and specs
The Mini-Max is for those who value snappier turns and a tighter parking spot, and aren‘t necessarily looking to max out hauling capabilities on the regular.
Size Guide
- Height
- 155 – 165cm | We recommend: size X-Small
- Height
- 165 – 175cm | We recommend: size Small
- Height
- 175 – 185cm | We recommend: size Medium
- Height
- 185 – 195cm | We recommend: size Large
- Height
- 195 – 205cm | We recommend: size X-Large
EP801 Drivetrain
- • Shimano EP801 Cargo Motor
- 504Wh Battery
- Nexus 5 Di2 gear hub + Gates Beltdrive
- Or CUES Di2 10s external drivetrain
Frame Specifications
- Frame material
- Double-Butted Chromoly Steel Frame
5 Sizes: XS, S, M, L, XL
- Seat post diameter
- 31.6mm
- Seat post clamp size
- 34.0mm
- Rear wheel
- 622, 12 x 142mm spacing, disc only
- Front wheel
- 406, 15 x 100mm spacing, disc only
- Tyre clearance, front
- 55mm with mudguards
- Tyre clearance, rear
- 55mm with mudguards
- Thru Axle Front
- 15×100, 125mm long, 17mm thread length, 1.5mm pitch
- Fork headset
- 1 1/8″ Threaded Integrated with locking cap
- Steerer headset
- 1 1/8″ Ahead
- Rack dimensions
- 70cm x 50cm, made of Aluminium
- Standard rack weight
- 1320g +/-
- Rack bolt size
- M8 x 15mm
Recommended maximum loading weight including rider: 175kg
Complete Bike Weight (including Webbing): 28kg +/-
