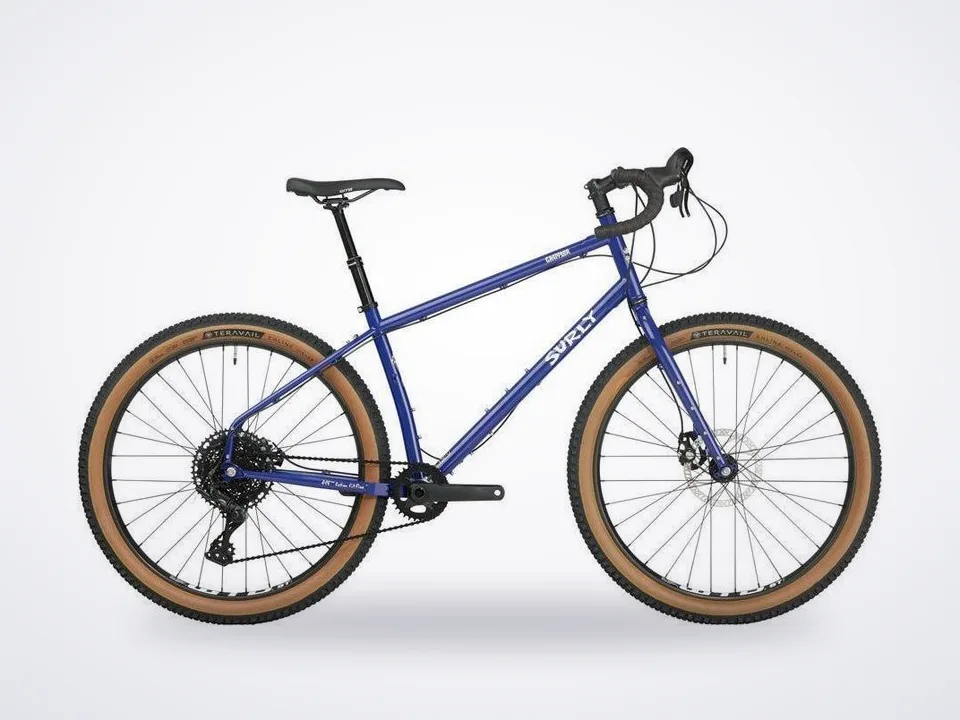

New* Surly Grappler
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Grappler is Surly’s dedicated drop-bar trail bike. With mountain geo designed around a comfortable, confident drop-bar hand position, it’s lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, thru-axles front and rear provide ideal stiffness and handling. Built around 27.5” wheels and compatible with internally geared hub and single-speed setups, Surly’s tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.
Show full description and specs
- 100% Surly Chromoly steel frame and fork, featuring Surly’s proprietary ’Natch tubing, double-butted main triangle, 1-1/8” headtube, non-suspension corrected
- Horizontal-slotted dropout, Surly Gnot-Boost spacing
- Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing
- E.D. coated frame for increased life expectancy
- 27.5 x 2.8” tire clearance (with or without fenders)
Build Kit
- Frame: 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
- Fork: Surly Dinner Fork - 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated
- Seatclamp
- Surly Stainless 33.1
- Crankset
- Samox BSA 2PCS Boost 32t
- Bottom Bracket
- Samox BSA
- Front Derailleur
- N/A
- Rear Derailleur
- microSHIFT M6205
- Cassette / Cog
- microSHIFT 11–48t
- Chain
- KMC X10 Black
- Grips / Bar Tape
- Cork, Black
- Handlebar
- Salsa Cowchipper 31.8
- Stem
- Promax DA-296, 31.8mm
- Headset
- Cane Creek 40
- Shifter
- microSHIFT SB-M100A, AdventX Dual Control Levers
- Brakes Calipers and Rotors
- Tektro Mira MD-C400, Tektro 180/160
- Saddle
- WTB Volt 142
- Seatpost
- TransX YSP15 Dropper 360mm, 100mm travel
- Front Hub
- Novatec 15x110mm, 32h
- Rear Hub
- Novatec 12x148mm, 32h
- Rims
- WTB ST i40 TCS
- Tires
- Teravail Ehline, 27.5 x 2.5", 60tpi
- Tubes
- included and installed
- Sizing
- Surly recommends size Medium for riders 5'7" - 6'0."
Condition: Grade A: Like-new bike, used to capture studio photography and/or displayed at an expo. Comes with manufacturer’s warranty.
