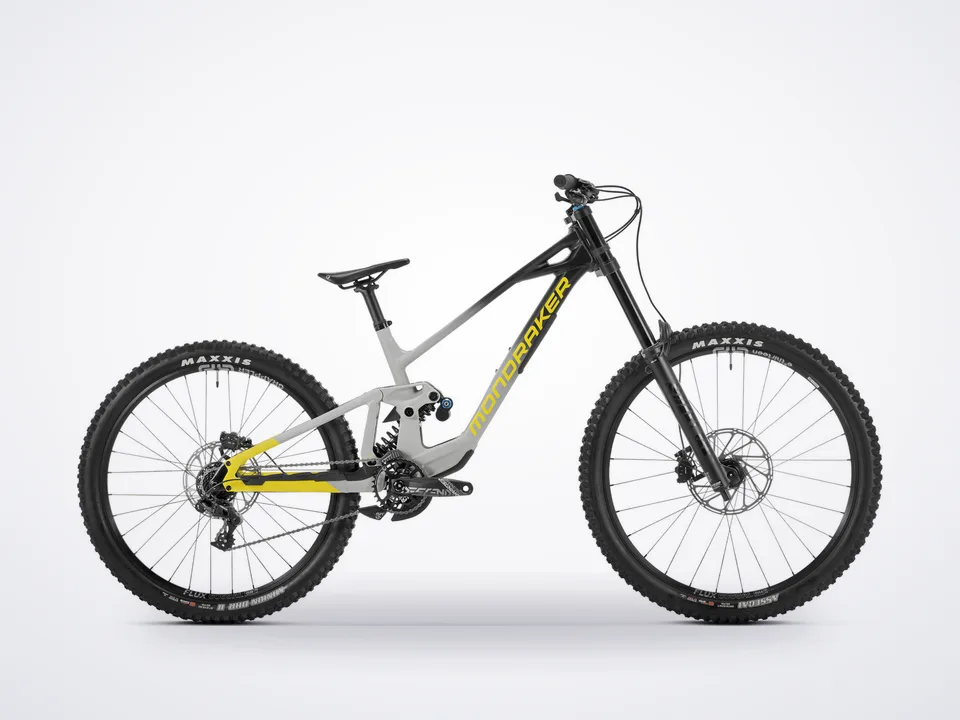

Mondraker Summum R
In stock at 1 shop in Vancouver
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The Summum embodies our passion for technology, competition and Downhill racing. It is no coincidence that Mondraker's first ever product was a Downhill bike… and the Summum has become the most successful race bike at Mondraker and a true benchmark.
Winning Proven Kinematics
This new model features an all-new updated Zero Suspension System kinematics delivering better performance with more mid stroke support -where you need it the most- that translates into a faster bike, improved handling and enhanced suspension suppleness off the top.
Show full description and specs
DH-Specific Forward Geometry
Longer reachs, slacker head tube angles… directly inherited from World Cup racing. Key refinements that you will benefit from when you put the bike to the test.
Proven BY The Mfr Team
This new Summum is the result of all the racing development from our MFR DH team over the past few years.
27 Adjustments, For The Perfect Set-UP
The new Summum offers dedicated, race-ready geometry right out of the box. And for skilled riders looking to further tune the bike’s geometry or adapt the bike to different courses and preferences, the frame can be tuned with 27 possible configurations thanks to adjustable headset cups, a lower shock-mount flip chip, and adjustable rear dropouts.
Headset-Reach
Adjust with three positions, standard and +/-5mm.
Lower shock-mount flip chip
To adjust bottom bracket height +/-5mm, and angles +/-0.35°
Adjustable rear dropouts
+/-5mm (450mm or 460mm options) from 455mm standard chainstay length.
Geometry
- Reach
- Standard Flip chip: Standard Chainstay Length: Standard
Specs
- Frame
Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX. capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05.
M / L / Xl
- Rear shock
Fox DHX2 Performance Elite, 225x75mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
CL80 compression, RL70 rebound, Rezi B80, Bleed 0.5, VVCM. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
- Fork
Fox 40 29 Float GRIP Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 52mm. Settings: 3-pos compression dial, air preload
Headset
Onoff DH ARS (Adjustable Reach System), 1-1/8", 1-1/8" steerer tube, 42x30x7 45ºx45º ACB sealed bearings, geometry kit cups (+-5mm)
- Stem
Onoff S9 DH CNC Integrated, 45-50mm adjustable length, 10mm rise, 31.8mm barbore, 7075 alloy, 2x6mm spacer
Handlebar
Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore.
- Grips
Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size
- Seatpost
- Onoff S3 DH Alloy, diameter 31.6mm, length 300mm, • Saddle, Ergon SM10 DH Black
Front brake
Sram Maven Base, 18 millimeter 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed organic…
