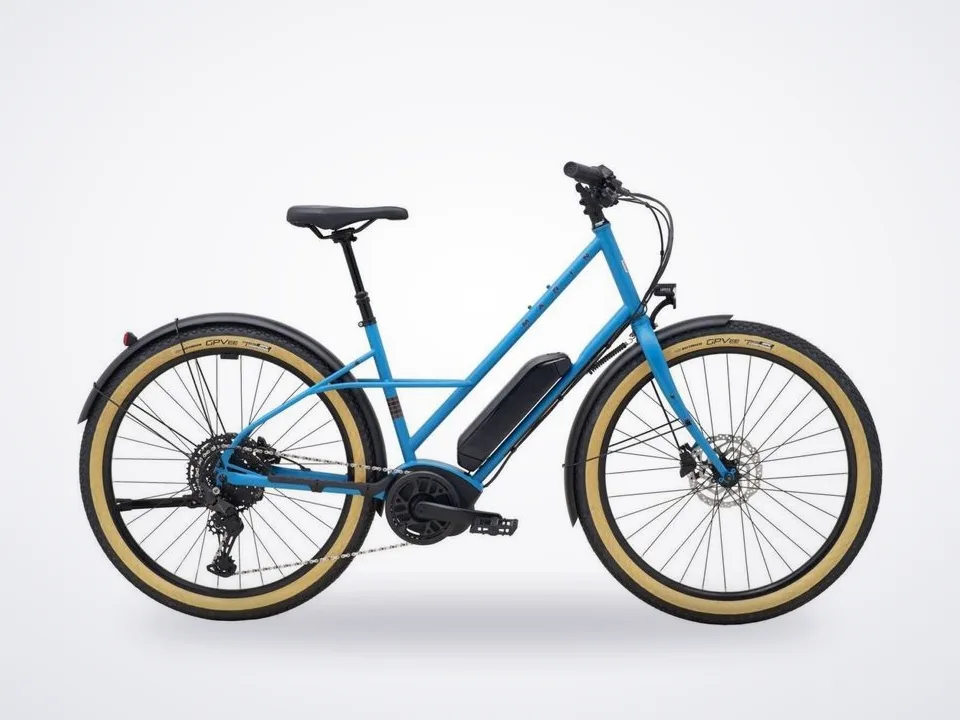

Marin Larkspur E

Adventure inspired, commute ready! The Larkspur E takes our modern icon and given it a boost. Larkspur E is ideally suited to a wide range of cycling endeavors, from fire road cruising to neighborhood exploring, errands, commuting, and beyond. It's an adventure bike, it's a gravel bike, it's a mountain bike, it’s one of our funnest bikes yet! The Larkspur E's Bosch Active Line Plus drive unit offers a range of 25-93 miles (40-150km), depending on rider weight, terrain, climate, and level of assistance used, and can recharge in about four hours. The top assisted speed is 20MPH in the US and New Zealand and 25 km/h in other global markets, and the different modes are selected via the controller with a clean integrated display next to the left grip. Shimano's CUES 10-speed drivetrain has a wide range and industry-leading durability when paired with center motors, while hydraulic disc brakes with large rotors help you effortlessly stop on the proverbial dime. And when you do come to a stop, push the lever for the dropper post to put both feet safely on the ground.

Specifications

Frame: Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts

Fork

CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets

Headset

FSA Orbit CE No.8B

Stem

Marin Alloy

Handlebars

Marin Urban Alloy, 31.8mm Clamp

Grips

Marin County

Rims

Marin Aluminum Double Wall, Disc Specific

Spokes

14g Black Stainless Steel

Front Hub

Forged Alloy, Disc Specific, 32H

Rear Hub

Forged Alloy, Disc Specific, 32H

Tyres: Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready

Shifter

Shimano CUES 10-Speed

Rear Derailleur

Shimano CUES 10-Speed

Front Derailleur

-

Crankset

Forged Aluminum w/ 38T Steel Chairing

Cassette

Shimano CUES 10-Speed 11-48T

Chain

KMC E11S

Front Brake

Shimano MT201 Hydraulic, 180mm Rotor

Rear Brake

Shimano MT201 Hydraulic, 180mm Rotor

Seatpost: TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel

Saddle

Marin City Plush

Pedals

Nylon Platform

Extras

Rear Kickstand, Mudguards

Lights

Lezyne Power Stvzo E500+ Headlamp, Lezyne Fender Stvzo Taillamp

Motor

Bosch Active Plus, 250W, 50Nm, Class 1 (North America - 20mph/32Kph, EU - 25Kph)

Battery

Bosch Power Pack 545, 545Wh

Display

Bosch Purion 200 Controller & LCD Display

Charger

Bosch EB12.110.016; 2A Charger

Range, Charging Time: 25-93 miles / 40-150km (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 7.3 Hours (estimated, under ideal conditions)

Geometry
