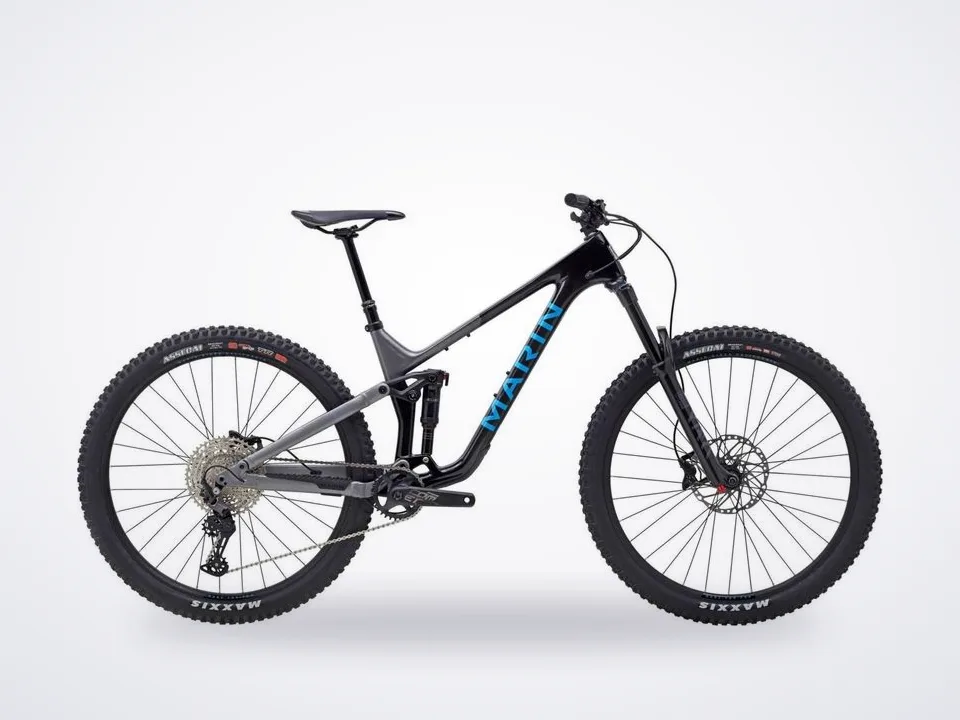

Marin Alpine Trail Carbon 1
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Big All-Mountain Days Where Travel And Geometry Matter Most
Big Bike, Big Wheels, Big Fun
The Alpine Trail is a 29” wheeled full suspension bike built for the all day enduro rider that earns their downhill fun.
Specifications
- Frame
Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
- Fork
Show full description and specs
RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
- Rear Shock
RockShox Deluxe Select+ RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount
- Rims
Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
- Hub Rear
Shimano FH-TC500MSB, 148x12mm, Disc, MicroSpline Freehub Body
- Hub Front
Shimano FH-TC500, 110x15mm
- Spoke
14g Black Stainless Steel
- Tires
Maxxis Assegai 29x2.5”, MaxxTerra, EXO+, Tubeless Compatible
- Derailleur Rear
Shimano Deore, 12-Speed, SGS
- Derailleur Front
- •
Shimano Deore, 12-Speed, SL-6100-IR
- Crankset
FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
- Bottom Bracket
FSA MegaExo 73mm BSA
- Chain
KMC X-12 Silver and Black
- Cassette
SunRace, 12-Speed, Microspline, 10-51T
- Brake Front
Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor
- Brake Rear
Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
- Brake Levers
Shimano BL-M4100, I-Spec EV Compatible
- Handlebar
Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
- Stem
Marin 3D Forged Alloy, 35mm
- Grips
Marin Single Clamp Locking
- Headset
FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Seatpost
TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 175mm Travel, 30.9mm
- Saddle
Marin Speed Concept
- Pedals
Not Included
- Extras
Bolt-On Thru-Axle, Downtube Protector
