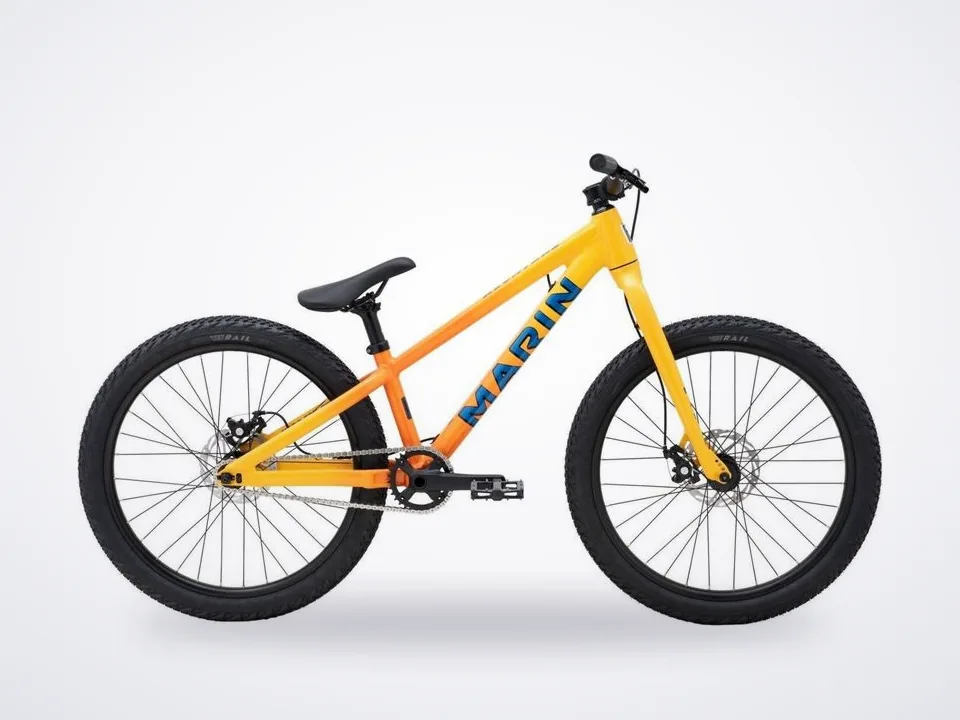

Marin Alcatraz 24"
In stock at 1 shop in Edinburgh
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
We've taken the Alcatraz 1 and scaled it down for smaller riders. Built upon the same tubing as the larger models, it features a 360mm reach, 69° headtube angle, and 72° seattube angle, with 369mm chainstays. A suspension-corrected rigid CrMo fork is designed to handle rough-and-rowdy riding, and a simple and stout single-speed drivetrain and Tektro mechanical disc brakes ensure a fun and safe ride.
Specifications
- Frame
Series 3 6061 Aluminum, 24” Wheels, 135x10mm Horizontal Single Speed Dropouts, 73mm Threaded BB, ISCG 05 Tabs
- Front Suspension
Show full description and specs
Marin Series 2 CroMo 24", Suspension Corrected, 100x9mm Dropouts
- Rear Suspension
- •
Rims: Marin Custom Extrusion, 27mm Inner, Pinned Joint, • Hub, Rear, Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H, • Hub, Front
Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
- Spokes
14g Black Stainless Steel
- Tires
Vee Tire, Rail 24x2.25”, LSG Compound, Wire Bead
- Derailleur, Rear
- •
Derailleur, Front
- •
Shift Lever
- •
Crankset: Marin Forged Alloy, Alloy 32T DM Chainring, 155mm Length, • Bottom Bracket, External Sealed Cartridge Bearings, • Chain
Kmc Hl-1
- Cassette
14T Single Speed Cog
- Brake, Front
Tektro MD-M280 Mechanical Disc 160mm Rotor
- Brake, Rear
Tektro MD-M280 Mechanical Disc 160mm Rotor
- Brake Levers
Tektro CL-330TS Alloy
- Handlebar
Marin Riser, 6061 Double Butted Aluminum, 31.8mm at center bulge, 38mm Rise, 700mm Width, 4º Up, 9º Back
- Stem
Marin 3D Forged Alloy, 31.8mm clamp, 35mm extension
- Grips
Marin MTN, Closed End
- Headset
FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
- Seatpost
Marin Alloy, 30.9mm
- Saddle
Marin DJ Saddle
- Pedals
Alloy Platform
- Extras
Marin Chain Tension Device
