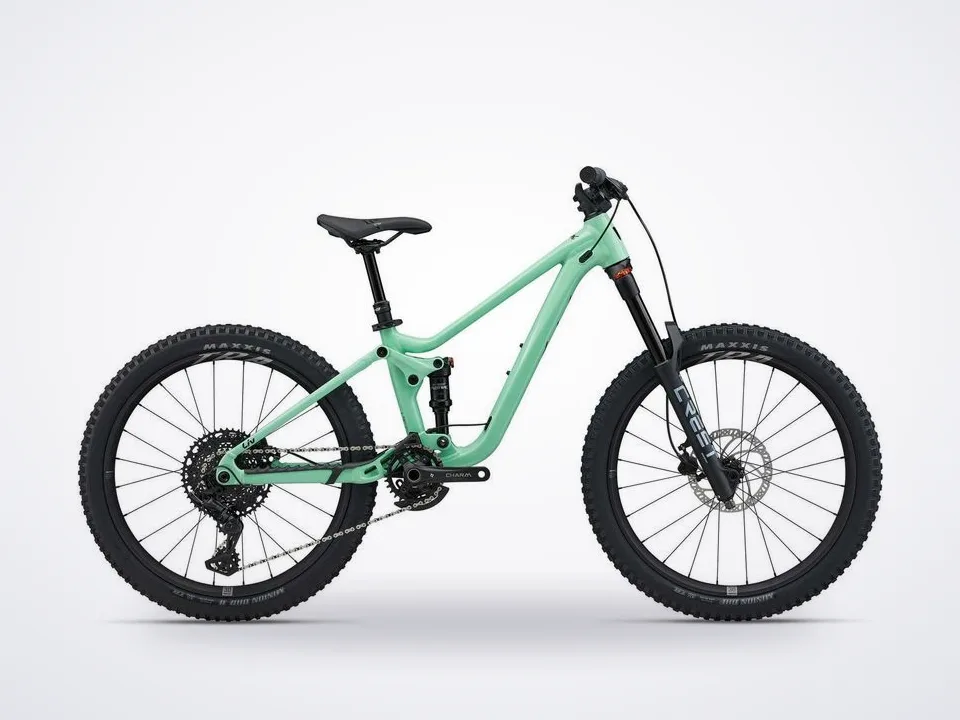

Liv Faith 24-Liv Neo Mint

Key Performance Factors

• Youth-tuned suspension: 130 mm Crest FloTrac Lite shock and 140 mm Crest TR Elite Lite fork are preset with easy-to-follow pressure and damping guidance for lighter riders.
• Agile & efficient: Aluxx SL frame and FlexPoint single-pivot design deliver a responsive, pedal-friendly ride that’s easy to handle.
• Off-road control: TRA WheelSystem with wide-wall rims supports lower pressures for grip and stability; 24" wheels and a dropper post help riders optimize position on climbs and descents.

Highlights

• ALUXX SL Aluminum: High-strength 6011-series alloy with excellent stiffness-to-weight for young riders.

FlexPoint suspension

Durable, low-complexity linkage delivering youth-tuned rear travel.

Crest FloTrac Lite shock

Low-friction damper gives lighter riders traction and control.

Crest TR Elite Lite fork

Stiff, lightweight chassis and FloTune damper tuned for <46 kg riders.

• Unified Suspension Setup: On-bike graphics and online charts show recommended pressures/clicks by rider weight.
• 24" TRA WheelSystem: Smaller diameter improves handling; Wide Guard tech boosts rim strength.

Dropper seatpost

Contact Switch AT Lite with low-force actuation and adjustable travel.

OverDrive

Tapered steerer/headset system for precise steering.

MegaDrive

Oversized, rectangular down tube for front-end stiffness and accurate handling.

PowerCore

Wide BB shell with asymmetric stays for pedaling efficiency and stability.

• Integrated frame protection: Down-tube/chainstay guards plus clear 3M protection under the head/down-tube junction.

Boost spacing

110/148 mm hubs for stiffer wheels, tire clearance, and clean chainline.

• Giant Tubeless System: WheelSystem and tires designed to run tubeless for comfort, control, and efficiency.

Specs

Colors

Neo Mint

Frame

Aluxx SL-grade aluminum, 130 mm FlexPoint suspension

Fork

Crest TR Elite Lite, FloTune damper, 24", 140 mm

Shock

Crest FloTrac Lite, 165×45, Trunnion

Handlebar

Giant Contact TR Riser, 20 mm rise, 680 mm

Grips

Giant small-hand grip

Stem

Giant Contact, 8°, 40 mm

Seatpost

Contact Switch AT Lite, 100 mm

Saddle

Selle Royal VIVO JR

Pedals

Giant Pinner Lite

Shifter

Microshift Advent X Trail Trigger SL-M9505-R

Rear Derailleur

Microshift Advent X RD-M6205AM

Brakes

Tektro (F 180 mm / R 160 mm)

Brake Levers

Tektro HD-J285

Cassette

Microshift Advent X G-Series 11–48T

Chain

KMC X10 (with missing link)

Crankset

ProWheel Charm 30T, 140 mm

Bottom Bracket

Press-fit

Rims

TRA WheelSystem, DBL

Hubs

Alloy; rear 72T pawl driver, 6-bolt

Spokes

Sapim Laser

Tires

Maxxis Minion DHF 24×2.4 (F), Minion DHR II 24×2.3 (R), 60 TPI folding

Extras

Giant 1×…
