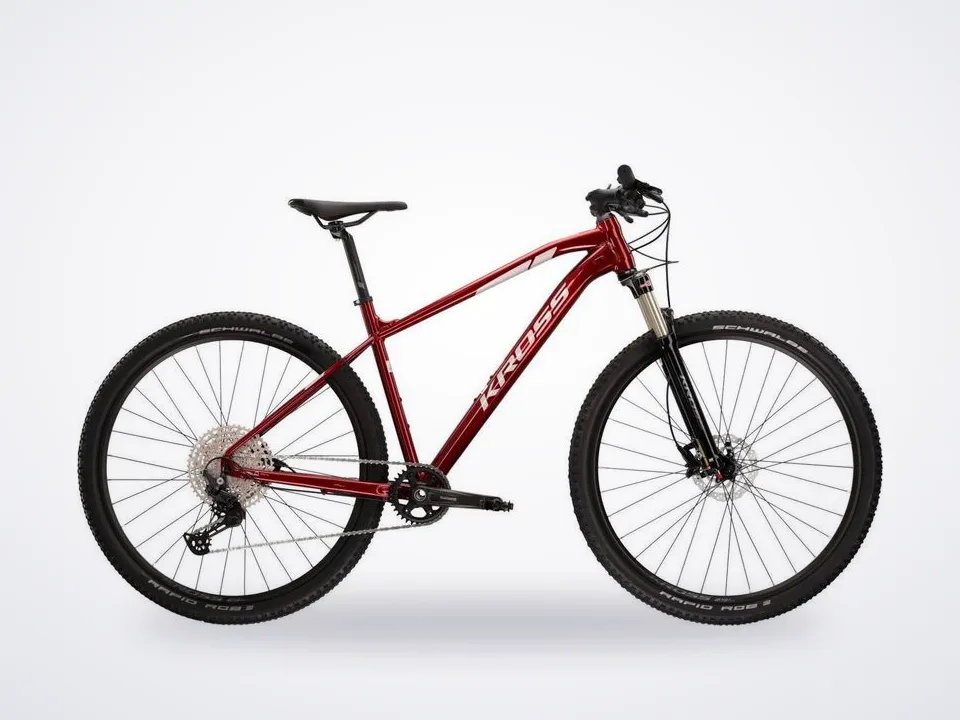

Kross Level 6 29er

The drivetrain is Shimano Deore M6100 throughout: shifter, rear derailleur, cassette and chain, driven by a Shimano MT510-1 crank with a 34-tooth chainring on a Shimano BSA BB52 bottom bracket. The rear hub is an MT401-B with a Micro Spline freehub body; the front hub is an MT200. Rims are Kross's own, and the bike rolls on Schwalbe Rapid Bob tyres in 29 × 2.25 front and rear.

Braking is SRAM Level front and rear with SRAM Level levers, running on 180 mm Shimano disc rotors at both ends. The cockpit on this size S is an aluminium 70 mm stem with 31.8 mm clamp and 7° rise, an aluminium 700 mm handlebar with 31.8 mm clamp, and Kross Scale grips. Larger sizes get an 80 mm stem (XL, XXL), a 720 mm bar (L, XL, XXL) and a 400 mm seatpost (XL).

Also available in sizes M, L, XL and XXL.

Frame and suspension

Item

Specification

Frame

Aluminium Lite

Frame size

S (17 inch)

Wheel size

29 inch

Fork

SR Suntour Raidon-XC RLR

Front travel

100 mm

Headset

FP-H813PL 1-1/8 inch

Drivetrain: Item: Specification, Shifter: Shimano Deore M6100, Rear derailleur: Shimano Deore M6100, Cassette: Shimano Deore M6100

Chain

Shimano M6100

Crank

Shimano MT510-1

Chainring

34T

Bottom bracket

Shimano BSA BB52

Wheels and brakes

Item

Specification

Rims

Kross

Front hub

MT200

Rear hub

MT401-B, Micro Spline

Tyres

Schwalbe Rapid Bob 29 × 2.25, front and rear

Brakes

SRAM Level, 180 mm Shimano discs front and rear

Brake levers

SRAM Level

Cockpit and seating (size S)

Item

Specification

Stem

Aluminium, 70 mm, 31.8 mm, 7°

Handlebar

Aluminium, 700 mm, 31.8 mm

Grips

Kross Scale

Seatpost

Aluminium, 27.2 × 350 mm

Saddle

Selle Royal

Pedals

FP-917N
