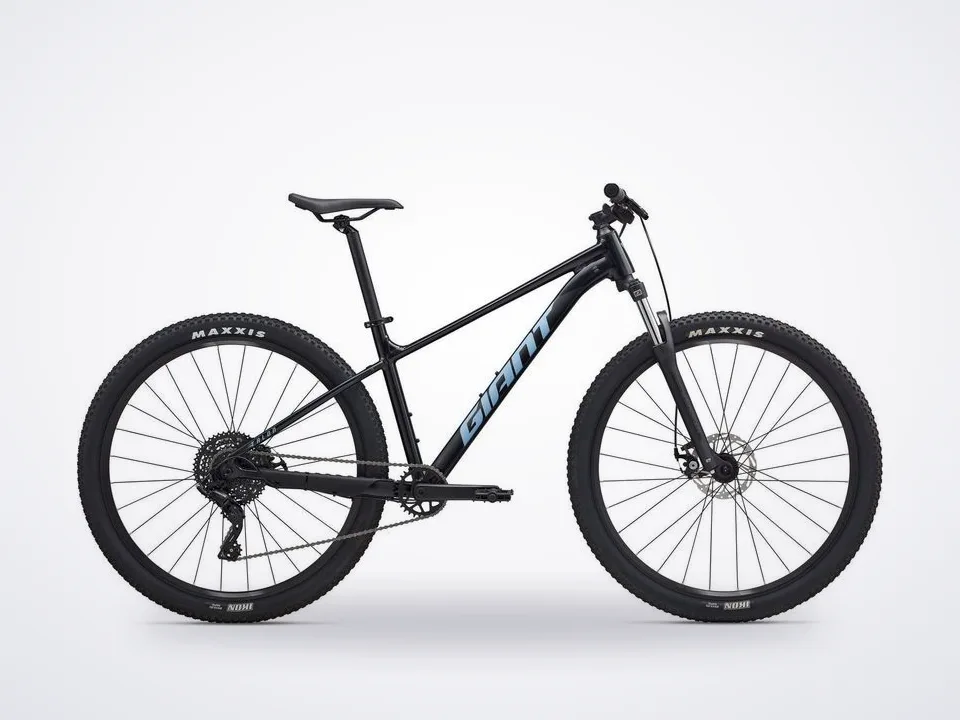

Giant Talon 4 Hardtail Trail

Modern MTB Design

Tapered fork steerer tubes*, quality components including a 1x drivetrain* with clutch-equipped rear derailleurs, thru-axle hubs*, internal cable routing (including dropper seatpost) and an integrated chainstay protector give aspiring trail riders room to grow. *on select models

Off-Road Control

New geometry is optimized for confident trail riding and two different wheel sizes (27.5 or 29-inch) depending on frame size. The geometry is also designed for front suspension with either an 80mm or 100mm fork depending on frame size. All models have clearance for high-volume tires (up to 2.4-inch) for traction and grip on technical terrain.

Light and Durable

All-new Aluxx aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.

Technical Specifications

• Sizes

27.5: XS, S; 29: S, M, L, XL, Xxl

• Colours

Azure Blue, Black, Cyber Lime

• Frame

Aluxx-grade aluminum, disc

• Fork

SR Suntour XCE, QR, steel steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)

• Handlebar

Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)

• Grips

Giant Sole-O

• Stem

Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)

• Seatpost

Giant Sport, 30.9 XS: 350mm (27.5) S: 350mm (27.5) / 375mm (29) M: 375mm (29) L: 375mm (29) XL: 420mm (29) XXL: 420mm (29)

• Saddle

Giant ErgoContact Trail

• Pedals

Platform

• Shifters

MicroSHIFT Acolyte, 1x8

• Rear Derailleur

MicroSHIFT Acolyte, clutch

• Brakes

Tektro 176, hydraulic, Tektro rotors [F]160mm, [R]160mm

• Brake Levers

Tektro TBK 176, hydraulic

• Cassette

MicroSHIFT, 12x46

• Chain

Kmc 8.1

• Crankset

ProWheel Forged, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)

• Bottom Bracket

Cartridge

• Rims

Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

• Hubs

[F] QR alloy, sealed bearing, [R] Giant Tracker hub, 12x142 thru axle, 24-pawl drive

• Spokes

Stainless, 14g

• Tires

Maxxis Ikon 27.5x2.2 or Maxxis Ikon 29x2.2, wire bead

• Max Tire Clearance

2.4"

• Max Chainring Size

32T

• Weight

The most accurate way to determine any bike’s weight is to have your local dealer weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
