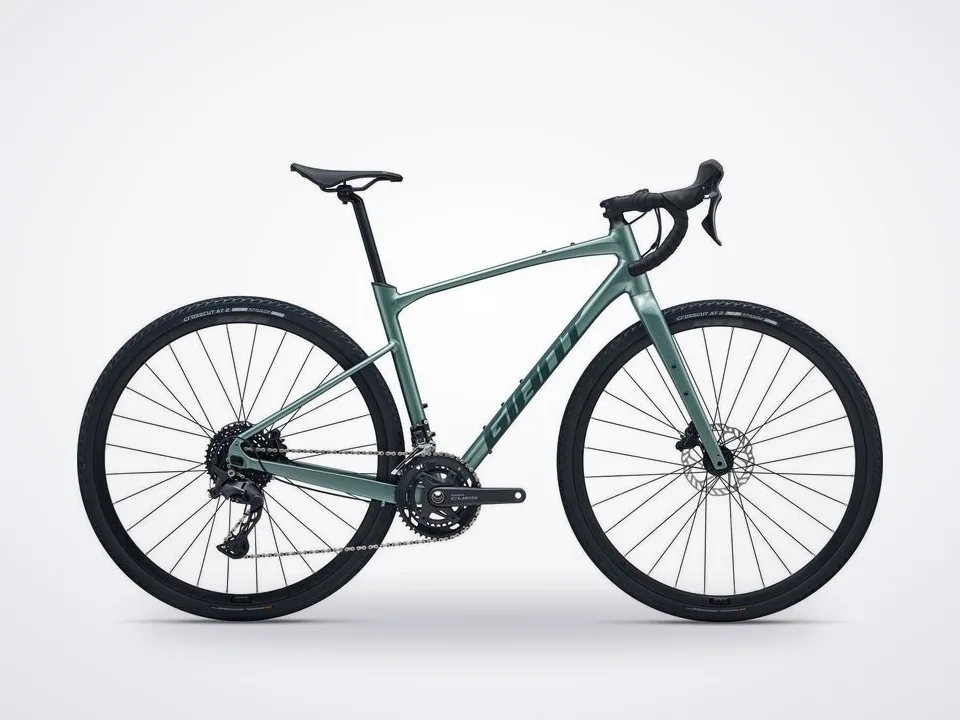

Giant Revolt 1
In stock at 5 shops in Edmonton and Ottawa and Calgary and Glasgow
Prices and stock checked Oct 22.
Where to buy
5 shopsIn Canada
In the UK
About this bike
Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.
Confident handling
Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
Show full description and specs
Tuned compliance
Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.
Specs
- Frame
- Aluxx-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
- Fork
- Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
- Handlebar
- Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
- Grips
- Cork tape with gel
- Stem
- Giant Contact, 8-degree XS
- 50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
- Seatpost
- Giant D-Fuse, alloy, 14mm offset
- Saddle
- Giant Grit
- Shifters
- Shimano CUES U6030, 2x10
- Front Derailleur
- Shimano CUES U6030
- Rear Derailleur
- Shimano CUES U6020
- Brakes
- Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
- Brake Levers
- Shimano CUES U6030 hydraulic
- Cassette
- Shimano CS-LG300, 11x39
- Chain
- Kmc X11
- Crankset
- Shimano FC-U6030-2, 32/46 XS
- 170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
- Bottom Bracket
- Shimano, threaded
- Rims
- Giant S-X2, alloy
- Hubs
- Giant alloy, 12mm thru-axle
- Spokes
- Stainless
- Tires
- Giant CrossCut AT 2, 700x38c, tubeless
- Extras
- Tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
- Max Tire Clearance
- 53mm
