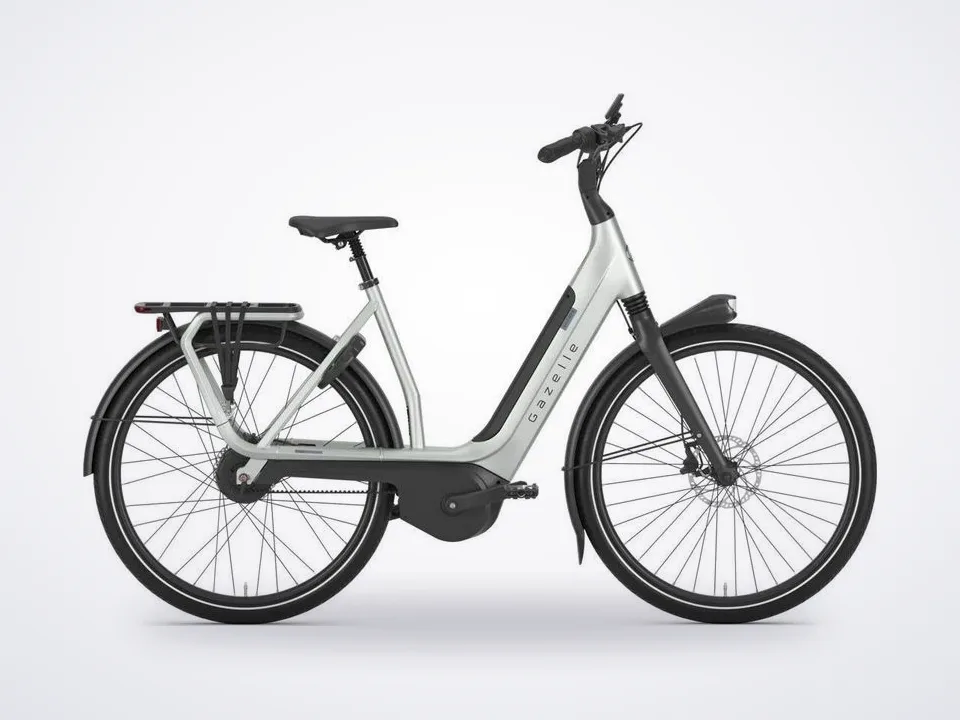

Gazelle Avignon C380 Belt Drive

Bosch's lithium-ion batteries are among the most advanced on the market. Their intelligent battery management system guarantees a long life, while the efficient energy control optimizes your bike's range. With the integrated 625 Wh battery, you'll always have enough range. The battery is secured in the frame with a lock. You can easily remove it from the bike with a key that also works on the café lock. Convenient, as you can charge the battery either on or off the bike.

Motor

Bosch Perline Line 600W / 75Nm of Torque

Battery

Bosch InTube 625Wh

Charger

Bosch 4A

Specifications

Category

Specification

Wheel Size (Front/Rear)

28" (700C) / 28" (700C)

Front Rim

Ryde ZAC 25, double-walled aluminum

Rear Rim

Ryde ZAC 25, double-walled aluminum

Front Hub

Shimano

Rear Hub

Enviolo Trekking Manual (continuously variable gearing hub)

Front Tire

Scalato Mondano

Rear Tire

Scalato Mondano

Gears

Stepless (continuously variable)

Gear Type

Hub transmission

Rear Hub System

Enviolo Trekking Manual

Drivetrain

Gates CDX belt drive

Front Sprocket

46T

Rear Sprocket

22T

Front Brake

Magura MT-C4 hydraulic disc, 2-piston, 180 mm rotor

Rear Brake

Magura MT-C4 hydraulic disc, 2-piston, 160 mm rotor

Brake Levers

Magura MT-C4

Frame Shape

Low-step

Frame Sizes

S (46 cm), M (53 cm), L (57 cm)

Frame Material

Aluminum

Frame Geometry

68.5° head tube angle, 69.5° seat tube angle

Frame Description

Aluminum frame with internal cable routing and integrated 625 Wh battery

Fork

Aluminum fork with mono integrated suspension

Fork Suspension Type

Mono integrated

Fork Travel

40 mm

Handlebar

Comfort curved aluminum

Stem

Adjustable

Grips

Gazelle Aero Leather grips

Saddle

Selle Royal Essenza Plus gel

Seatpost Suspension

Yes
