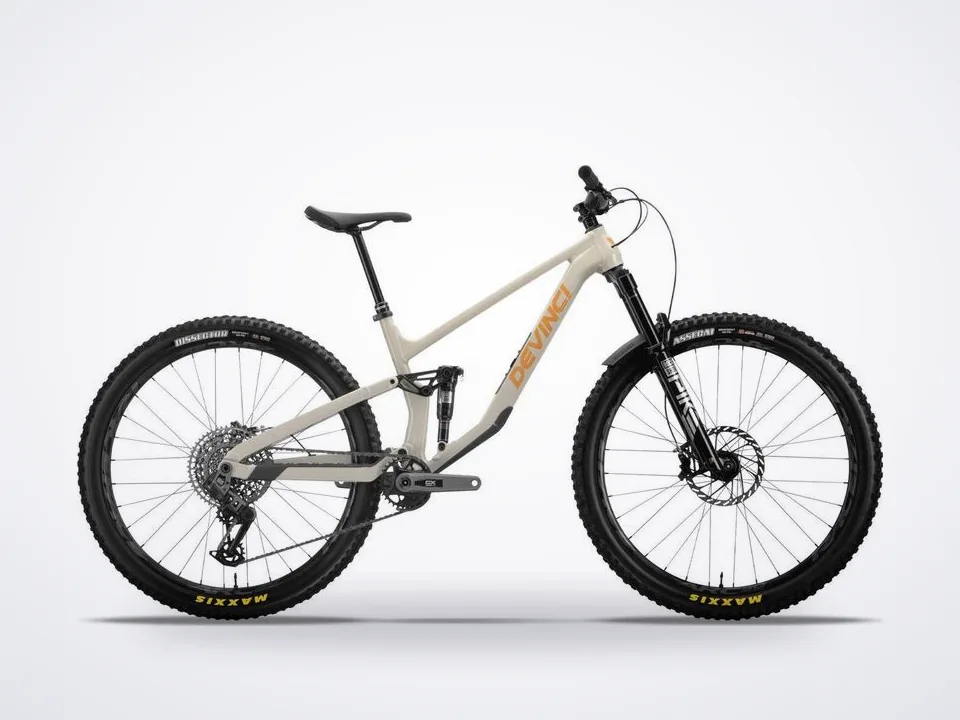

Devinci Troy ST GX AXS
In stock at 1 shop in Toronto
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
Lightning with a bottle cage.
The new Troy ST is the black belt in the Troy family. Insanely agile, the 130mm travel Split Pivot frame has updated geometry with size-specific chainstays that will have you riding stuff you thought you wouldn’t, fast. Its integrated downtube storage and go get ‘em attitude will lure you into all day rides on “once a year” trails, weekly. Full 29 in M-XL sizes and full 27.5 in XS-S, the ST isn’t trying to be anything it’s not. It’s made in Canada, guaranteed for life and ready to rumble. This bike is proof that with travel, sometimes less is more.
Show full description and specs
Tailored Wheel Sizes
The XS and S sizes feature 27.5-inch front and rear wheels to accommodate smaller riders, while the M, L, and XL sizes of the Troy ST are equipped with 29-inch wheels, creating a fully balanced feel from the ground up.
Rock Shox Ultimate Series
Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The Troy GX AXS is equipped with the Pike Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Deluxe Ultimate takes care of rear shock duties, delivering incredible traction, tunability, and control.
Frame Tech Specs
- Rear travel
- 130 mm
- Front travel
- 140 mm
- Rear tire clearance
- 27,5'' x 2.6” / 29'' x 2.5''
- Rear hub spacing
- 12 x 148 Boost
- Max & min chainring clearance
- Max. 34T | Min. 28T
- Chainline
- 55 mm
- Derailleur hanger
- UDH™
- Caliper mount
- 200 mm Post Mount
- Seat tube diameter
- 31.6 mm ID / 34.9 mm OD
- Seatpost max insertion
- XS → 235 mm / S → 265 mm / M → 280 mm / L → 305 mm / XL → 330 mm
- Headset
- Top ZS44 | Bottom ZS56
- Cable routing
- Internal
- Rear shock dimension
- Trunnion | 185 x 47.5 mm
- Rear shock hardware
- Top: NA | Bottom: 40 x 10 mm
- Linkage bearing type
- Enduro™ double-lip sealed
Fork dimensions (Axle-to-Crown measurement/Offset): 551 mm / 44 mm (M, L, XL)533 mm / 37 mm (XS, S)
- Chain guide mount
- ISCG 05 – 3-Bolt
- Frame material
- Aluminum 6061-T6 | Optimum G04
