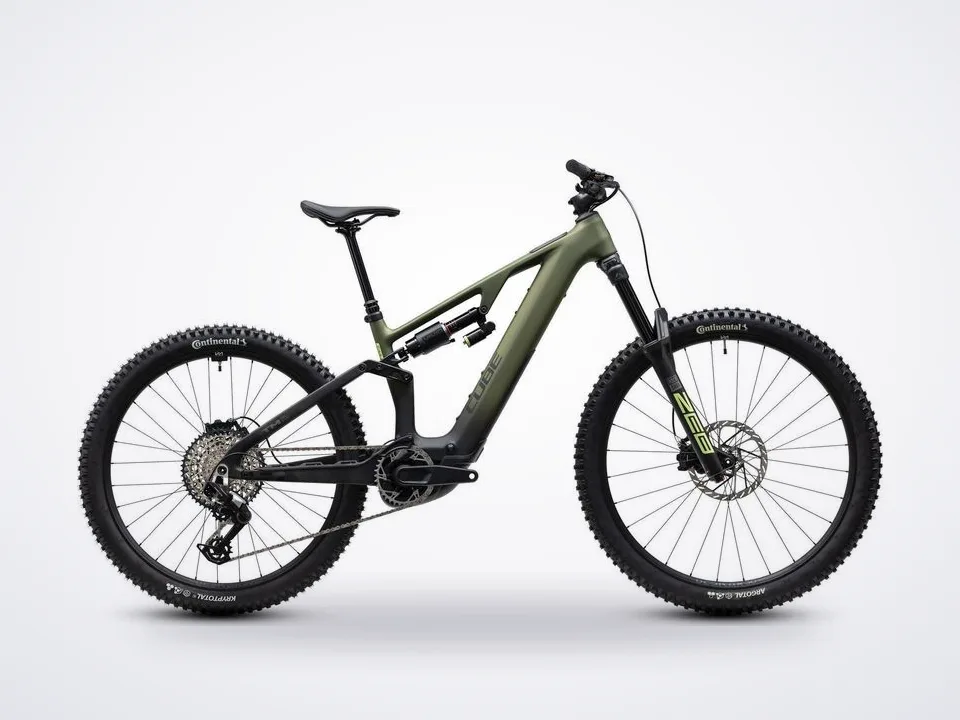

Cube AMS Hybrid 177 C:62 TM 600X reedgreen´n´gills
In stock at 1 shop in London
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
A bike built to take on the rowdiest mountain trails and come out on top needs components to match. So, for the AMS Hybrid 177 C:62 TM, we began by selecting RockShox's Zeb Select+ fork and matched it with a Vivid Select shock. Then we shod a pair of Newmen Beskar 30 wheels with Continental Argotal and Kryptotal 2.4in tyres, and added a set of Sram's powerful Maven Silver hydraulic disc brakes. There's a Kiox 400C controller to keep you on top of the Bosch CX drive and 600Wh battery's performance. And Sram's Eagle 90 Transmission 1x12 gears to get your power to the trail. It's ready. Are you?
Show full description and specs
Frame
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and fitted with the Bosch CX motor, it features a built-in 600Wh PowerTube battery for the ideal balance of weight and range. We've designed the geometry and kinematics to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, while an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!
Specification
Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
- Fork
- RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered, 15x110mm, 170mm
- Frame shock
- RockShox Vivid Select, 230x65, Rebound Adjust, 2-Position Lever
- Shock hardware
- Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem
- Newmen Evolution SL 318.4, 31.8mm
- Handlebar
- Newmen Beskar 318.40 VariGrip System
- Grips
- Newmen Slat VGS
- Rear Derailleur
- Sram Eagle 90 Transmission, 12-Speed
- Chain Guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- Shifters
- Sram Eagle 90 Transmission, Single Click
- Brakes
- Sram Maven Silver, Hydr. Disc Brake (200/200)
- Crankset
- ACID MTB Hybrid Pro, 36T
- Cassette
- Sram XS-1275, 10-52T
- Chain
- Sram GX Eagle™ Transmission
- Wheelset
- Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Tires Front
- Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4
- Tires Rear
- Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
- Pedals
- ACID PP Rookie large
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
- Motor
- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Battery
- Bosch PowerTube 600
- Charger
- Bosch 4A
- Remote
- Bosch Mini Remote
- Display
- Bosch Kiox 400C
- Weight
- 22,5 kg
System Weight max.: 135 kg
- Driver max. Weight
- 110 kg
