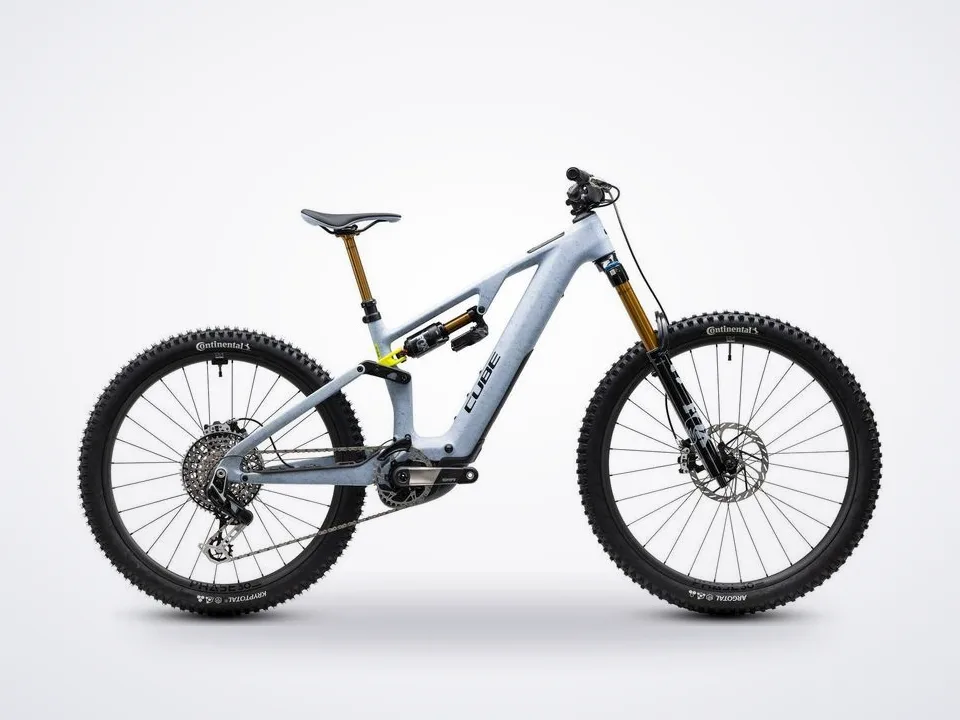

Cube AMS Hybrid 177 C:62 Super TM 600X artichoke´n´lime
In stock at 1 shop in London
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
A special bike needs special treatment, which is why we fitted Bosch's powerful and versatile CX-R drive to the AMS Hybrid 177 C:62 Super TM. Combined with a 600Wh battery, it has more than enough grunt to get you back to the top for one more run, again and again – and the Kiox 400C top tube display shows you exactly what's what. Fox's 38 Factory Grip X2 fork and Float X2 Factory Neo shock help deliver 170mm of rock-devouring travel to the Newmen Phase 30 wheelset, shod with Continental Argotal and Kryptotal 2.4in tyres. Sram's Maven Ultimate hydraulic disc brakes and a dropper post help keep you in full control at all times. And Sram's precise XX Eagle Transmission gears with Race Face Era carbon crank are all you need for long days of Alpine-descending mayhem. Bring it on!
Show full description and specs
Frame
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and fitted with the powerful Bosch CX-R motor, it features a built-in 600Wh PowerTube battery for the ideal balance of weight and range. We've designed the geometry and kinematics to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, while an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!
Specification
Frame: C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing
- Fork
- Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
Frame shock: Fox Float X2 Live Valve Neo Factory, 230x65mm, High/Low Speed Rebound, Low Speed Compression, Firm Mode Adjust, Kashima Coated
- Shock hardware
- Front: 30x8mm, Rear: w/o DU-Bushing 15 mm
Headset: Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment
- Stem
- Race Face Turbine R 35
- Handlebar
- Race Face ERA 35
- Grips
- ACID Disrupt
- Rear Derailleur
- Sram XX Eagle AXS™ Transmission, 12-Speed
- Chain Guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
- Shifters
- Sram AXS™ Pod Ultimate Controller
- Brakes
- Sram Maven Ultimate, Hydr. Disc Brake (200/200)
- Crankset
- Race Face ERA E-MTB, 36T
- Cassette
- Sram XS-1297, 10-52T
- Chain
- Sram XX Eagle Transmission
- Wheelset
- Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
- Tires Front
- Conti Argotal, Enduro SuperSoft, Tubeless Ready, 2.4
- Tires Rear
- Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4
- Pedals
- ACID PP Rookie large
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- Fox Transfer Factory 31.6mm, Kashima Coated
- Motor
- Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)
- Battery
- Bosch PowerTube 600
- Charger
- Bosch 4A
- Remote
- Bosch Mini…
