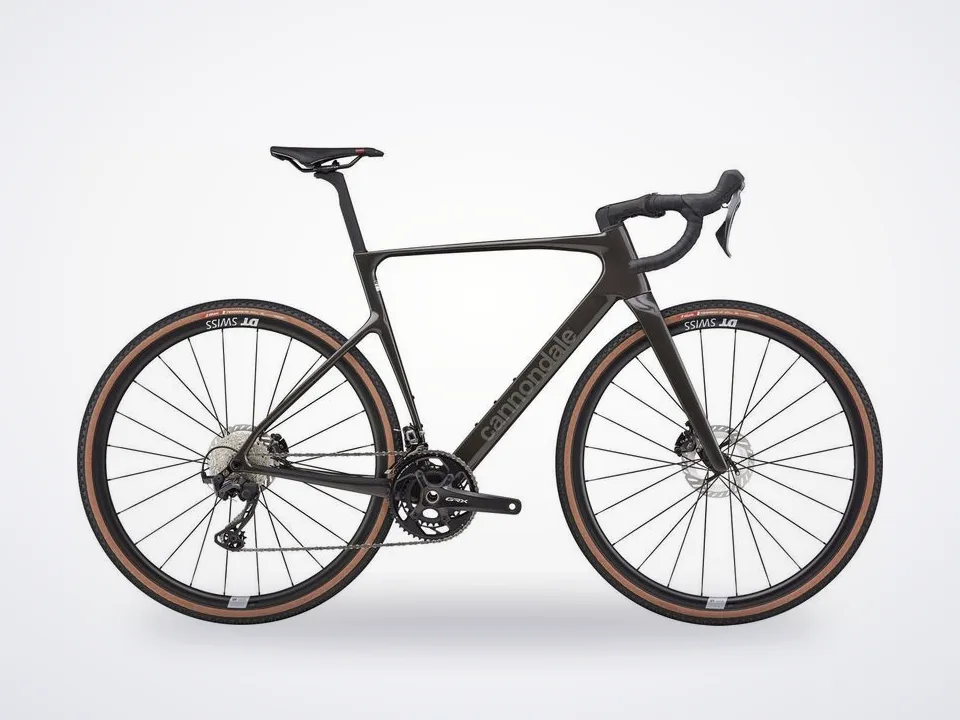

Cannondale SuperX 3 Raw

Model Description

Ready, Set, Thrash. SuperX 3 channels Cannondale’s racing pedigree, turning every stretch of gravel into a proving ground. The carbon frame is as light as it is tough, paired with DT Swiss GR1800 wheels and Vittoria Terreno tries to make short work of gravel and dirt. Shimano GRX 820 delivers crisp, consistent shifting, and flat-mount hydraulic brakes ensure steady control. Vittoria Terreno tires bite into loose terrain, keeping you fast and focused from start to finish. SuperX 3 turns every race into an opportunity to leave your mark.

What it's for

Elite gravel racing, KOM hunting, Going like hell

Highlights

• Super light, low-drag, SuperX carbon frameset, backed by our Lifetime Warranty
• Crisp, reliable shifting from Shimano’s GRX 820 gravel groupset
• Powerful, controlled braking from Shimano GRX 820 hydraulic disc brakes with CL800 rotors
• DT Swiss G1800 Spline wheels with DT 370 hubs offer precise handling and ride-anywhere durability
• Our sleek Conceal stem works with our Delta Steerer to route cables cleanly through the headtube
• Vittoria Terreno T50, 700x40c, tubeless ready tires offer unparalleled speed and capability across a wide range of surfaces

Specifications

• Frame: SuperX Carbon, Proportional Response construction, internal cable routing, 12x142mm thru-axle, UDH BSA 68mm threaded BB, flat mount disc, integrated seatpost binder
• Fork: SuperX Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset

Headset

Integrated, 1-1/8" - 1.5"

Rear Derailleur

Shimano GRX 820, Shadow RD+

Front Derailleur

Shimano GRX 820, braze-on

Shifters

Shimano GRX 820, 12-speed

Chain

Shimano M8100, 12-speed

Crankset

Shimano RX 820, 48/32

Cassette

Shimano 105 7100, 11-36, 12-speed

Bottom Bracket

Shimano BSA 68

Brakes

Shimano GRX 820, 160/160mm CL800 rotors

Brake Levers

Shimano GRX RX820 hydraulic disc

Front Hub

DT Swiss 370, 12x100mm centerlock

Rear Hub

DT Swiss 370, 12x142mm centerlock

Rims

DT Swiss G1800 Spline 24mm inner width, 25mm depth, 24h, tubeless ready

Spokes

DT Swiss Aero Comp

Tires

Vittoria Terreno T50, 700x40c, tubeless ready

Handlebar

Cannondale C2, 7050 Alloy, Compact

Stem

Cannondale C1 Conceal, Alloy, 31.8, -6°

Handlebar Tape

Cannondale Bar Tape, 3.5mm

Saddle

Prologo Dimension AGX STN

• Seatpost: Cannondale C1 Aero 27 Carbon, SmartSense compatible, 0mm offset (46cm), 20mm offset (51-61cm)
