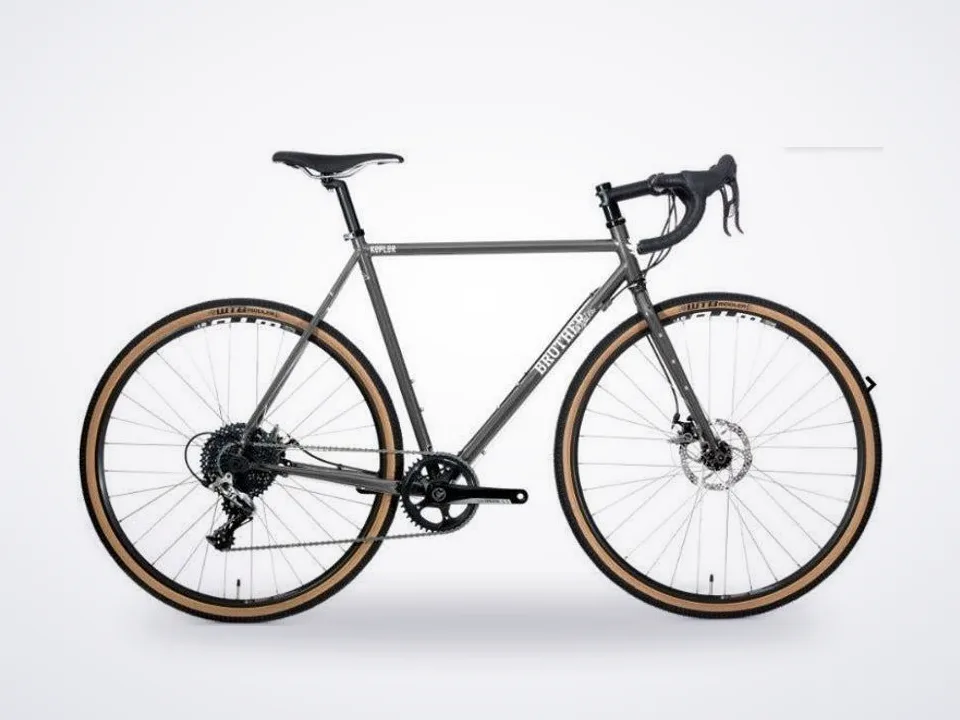

Brother Cycles Kepler Disc

2025 Mehtehs and Keplers now available to pre-order. Please note expected arrival dates are late February

Features

Frame tubing

4130 chromoly double-butted main triangle, ED coated

Brake compatibility

cantilever or v-brake

Rear Dropouts

132.5mm quick release (130mm or 135mm hub compatible)

Seat post diameter

27.2mm

Headset

1 1/8" threadless. EC34/28.6 upper, EC34/30 lower (not included)

Front derailleur clamp diameter

28.6mm

Bottom bracket shell

68mm bottom bracket, ISO threaded

Maximum tyre clearance

650b x 50mm

Fork

Lugged flat crown, quick release with mudguard and rack mounts

3 sets bottle cage mounts on all sizes

Rear rack and mudguard mounts

Chainring clearance

up to 50-39-30t triple, 52-36t double, 48t single

Frame weight (medium)

2.0kg

Fork weight (uncut steerer)

1.1kg
