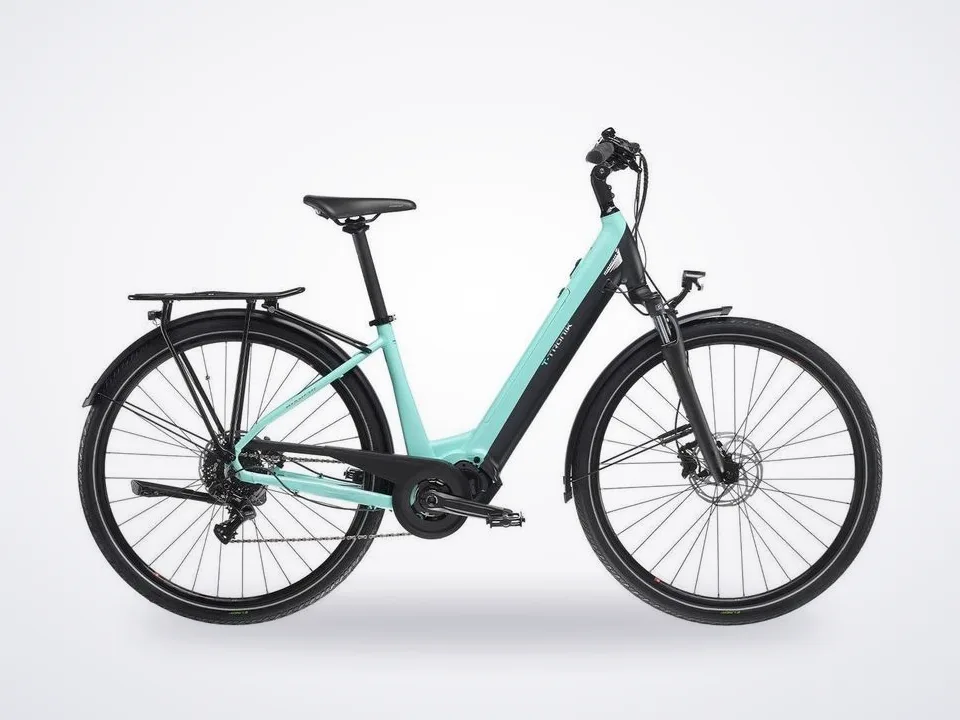

Bianchi T-Tronik C-Type X7/X5
In stock at 1 shop in Los Angeles
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The T-Tronik C-TYPE is an exciting urban bike with a frame designed around accessibility. From city commutes to leisure rides, this bike is the perfect ride partner for urban surroundings. Ride around the city easily with the step-through frame, making riding achievable without sacrificing style.
On C-Type it is easy to get on and off your bike even in regular day-to-day apparel. The minimalist design encourages all types of riders to enjoy cycling in and out of the city.
Show full description and specs
The T-Tronik range uses a premium Shimano Steps E6100 motor, and a 250W Phylion 417Wh battery for an impressive range up to 95km. Powerful torque of up to 60Nm provides more than enough assistance for hills or setting off at junctions.
Build Kit
- Motor
- Shimano E6100, 250W, 60Nm
- Battery
- 417Wh integrated battery
- Frame: T-Tronik C-Type ALU sizes: 43, 47 - 9x135 mm quick release dropouts - Post mount 160 disc brake type
- Fork: Suntour NEX-E25 DS 700C, 63mm travel, 1-1/8" HT, w/out 9x100 QR , minimum 160mm rotor, maximum 180mm rotor, 30mm stanchions
- Headset
- FSA HST STbk 1-1/8" 44H-N10P
- Shifters
- Sram X5, 9sp
- Rear Derailleur
- Sram X7, 9sp, max. 36T
- Crankset
- Shimano Chainring, SM-CRE61, 38T FSA SMN E-Bike Forged Crankset - SMN / 170mm
- Bottom Bracket
- Included in the motor
- Chain
- KMC e9S NPBK
- Brakes
- Promax, DSK-925
- Rotor
- Promax DSK-925, 160mm, center lock
- Wheels
- Ebike 650 TR 28" - Etrto 622 x 23C, 32hole, height 18mm
- Rear Hub
- Shimano, FH-TX505-8, 32H 8/9/10/11-Speed,OLD:135MM,AXLE:146MM,QR:170MM
- Front Hub
- Shimano, HB-TX505,32H OLD:100MM AXLE:108MM, QR:133MM
- Tires
- Chaoyang E-Liner City 700x45C, 60tpi
- Stem
- Velomann, 28.6 mm steerer ID Clamp, 31.8 mm
- Handlebar
- Velomann 31.8/680mm, RISE 20MM, Sweep 15°
- Grips
- Herrmans GRIPset Oxy
- Seatpost
- Velomann, length 350mm for SM size and 400mm for MD, diam.31,6mm, 0mm seatback
- Saddle
- Selle Royal
- Pedals
- VP black aluminum, axle 7mm, 113,5x110,5mm
- Mudguards
- SKS PET Mudguards A60 S /28"
- Kickstand
- Ursus, load 35kg
- Rear Carrier
- Racktime, 28", Max load 25Kg
- Front Light
- Herrmans Mr GO e-bike 6/12 V
- Rear Light
- Axa Juno e-bike 6/12 V
Sizing: We'd recommend the following sizes based on rider height. Please note this is an approximate range and the buyer is responsible for verifying the fit before purchase.
- 43cm: 5'2" to 5'10"
- 47cm: 5'6" to 6'2"
