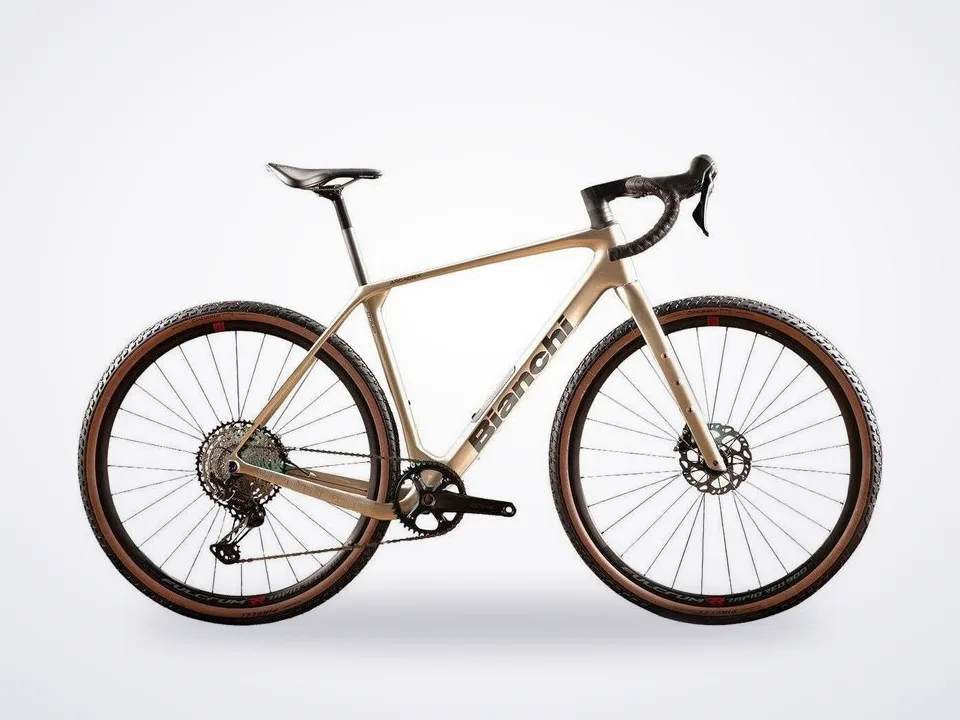

Bianchi Arcadex Comp GRX 610
In stock at 1 shop in Edmonton
Prices and stock checked Oct 22.
Where to buy
1 shopAbout this bike
The New Arcadex
A capable gravel bike equipped for adventure, bikepacking and discovering new frontiers.
We engineered the Arcadex to take you further. Further outside your usual riding locale. Further into the wilderness. Further beyond your comfort zone. We wanted to design a gravel bike capable of supporting you on the most adventurous rides. That meant devising
New ways to enhance its capabilities, innovative features to augment exploration.
The result is the new Arcadex, an intrepid, rugged adventure machine that will take you further than ever.
Show full description and specs
Dedicated Frame
The carbon fibre frame of the Arcadex benefits from a dedicated endurance geometry, specifically suited to long distance rides and expeditions that see you in the saddle on
Back-to-back days. It is offered in Pro and Comp versions. Both Pro and Comp are spec’d as standard with Velomann integrated cockpit. Both models are also upgradeable with
Bianchi’s fully-integrated monocoque carbon fibre handlebar, developed by Reparto Corse. The Arcadex has clearance for up to 700c x 50mm tires. It can also be run with clip-on fenders/mudguards. The bicycle is rated for ASTM 2 usage on off-road surfaces and all
Specifications feature a Mitora 149 H1 saddle to provide the all-day comfort you need for multi-day escapes.
Specs
Frame: Arcadex Comp Disc BrakeBrake Mount: Flat Mount 140/160Bottom Bracket: PressFit 86.5 x Ø41Rear Axle: Thru-12 (142 mm OLD)Front Derailleur: Non-CompatibleRear Derailleur: SRAM UDH HangerMax Chainring Compatibility: —
Fork: Bianchi Arcadex Carbon ForkBrake Mount: Flat Mount 140/160Front Axle: Thru-12 (100 mm OLD)Tire Clearance: 622x42 mmSteerer: 1 1/8”Material: Epoxy SM Carbon Fiber Composite
Headset: Bianchi Custom Acros ICR (Internal Cable Routing)Spacers: 5mm x1, 10mm x3Headtube Cover: Bianchi CustomCompression Ring: 1.125”Bearings: Angular Contact 42x52x7 (top), 40x52x7 (bottom) + seals
- Shifters
- Shimano GRX 610 ST/BL-RX610
- Rear Derailleur
- Shimano GRX 822 RD-RX822 SGSMax Cassette: 51T
Crankset: Shimano GRX 610 FC-RX610-1, 40TLengths: 170mm (XS/47–SM/51), 172.5mm (MD/55–LG/58), 175mm (XL/61)
- Bottom Bracket
- Shimano SM-BB72-41B, Press Fit
- Chain
- Shimano CN-M7100
- Cassette
- Shimano CS-M7100 12-speed, 11–51TInterface: MicroSpline
- Brakes
- Shimano Hydraulic BR-RX400
- Rotors
- Shimano SM-RT70 IceTechMount: CenterlockDiameter: 160mm (Front & Rear)
Wheels: Fulcrum RapidRed 900 2-Way Fit ReadyRim: Aluminum Alloy, 700CHeight: 24mmInner Width: 22mm
- Tires
- Pirelli Cinturato™ Gravel M Classic 45-622Tan Sidewall
Stem: Velomann AICR Alloy, -2° RiseSteerer: 1 1/8” (28.6mm)Bar Clamp: 31.8mmLengths: 80mm (XS), 90mm (SM), 100mm (MD), 110mm (LG), 120mm (XL)
- Handlebar
- Velomann Gravel ICR AlloyFlare: 16°
- Grips / Tape
- Bianchi Hexagon Tape, 2.5mm, Black
- Seatpost
- Velomann Carbon UD Ø27.2mmLengths: 300mm (XS), 350mm (SM–XL)
Saddle: Velomann Mitora 149 H2Cover: Soft TouchPadding: FoamShell: Nylon CarbonRails: SteelSize: 250x149mm
